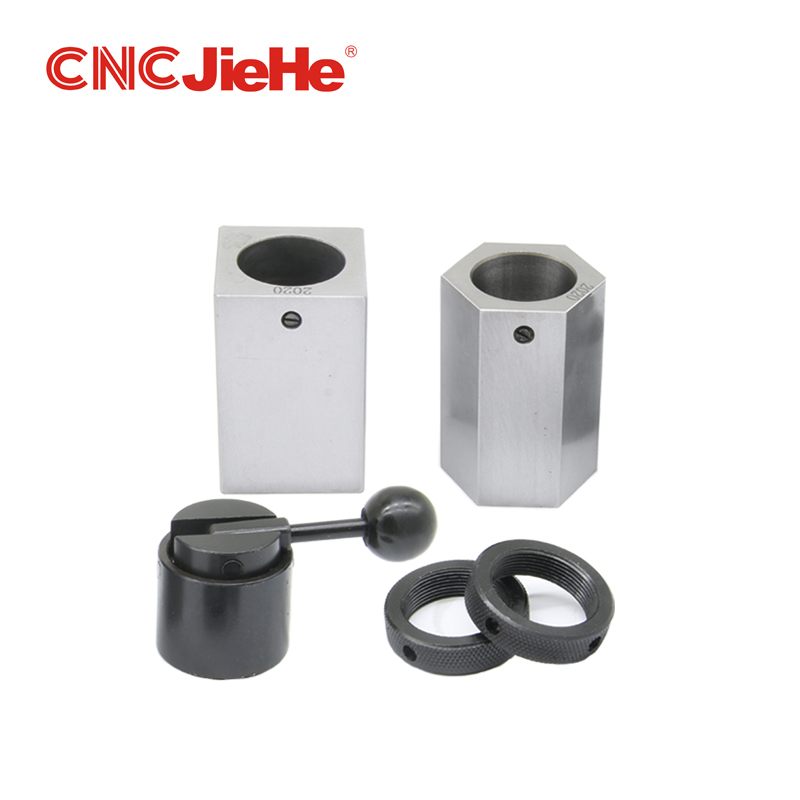

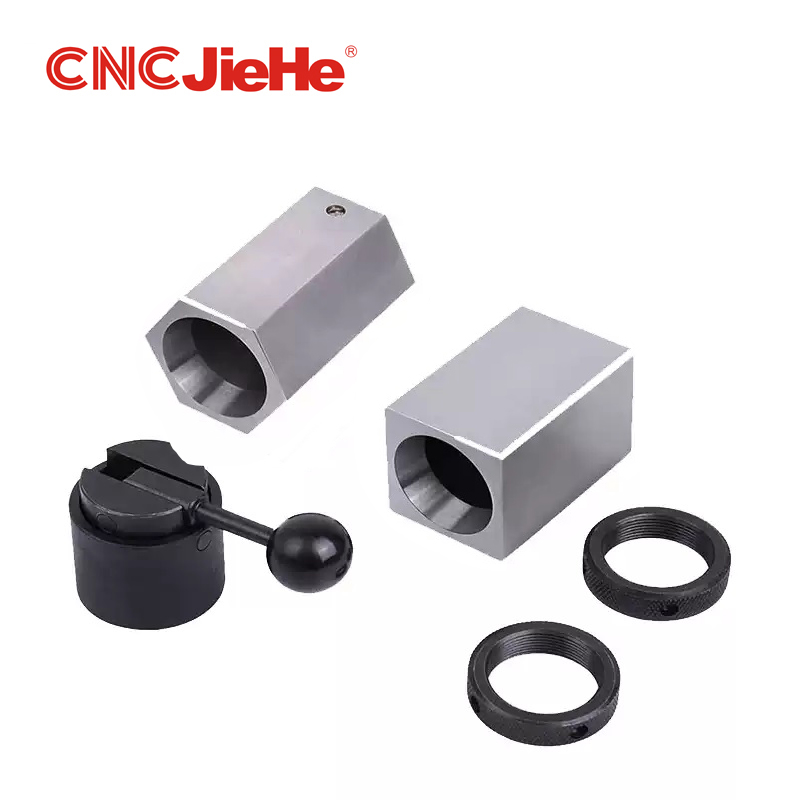

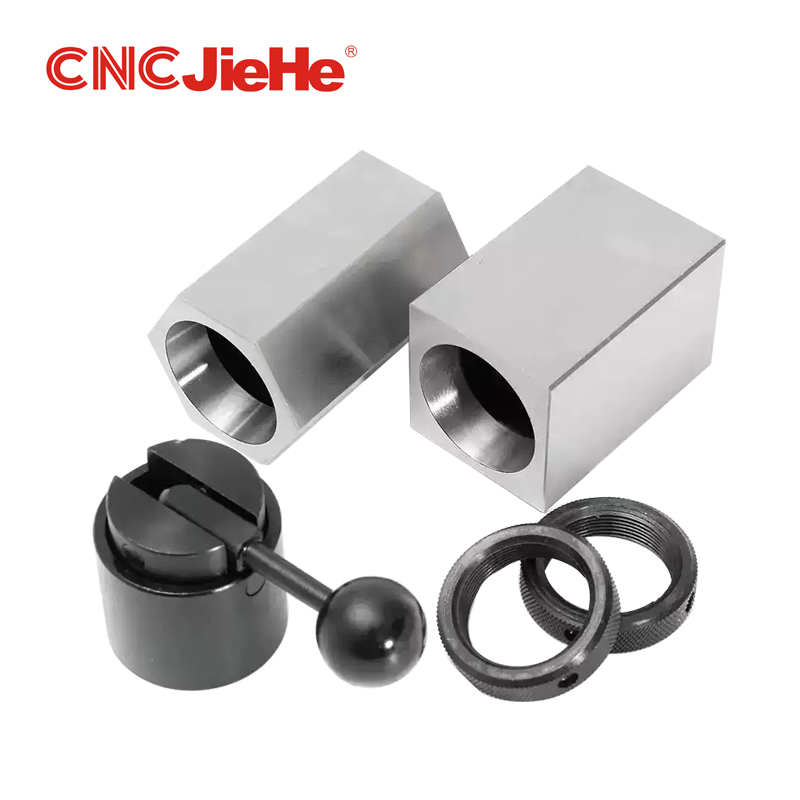

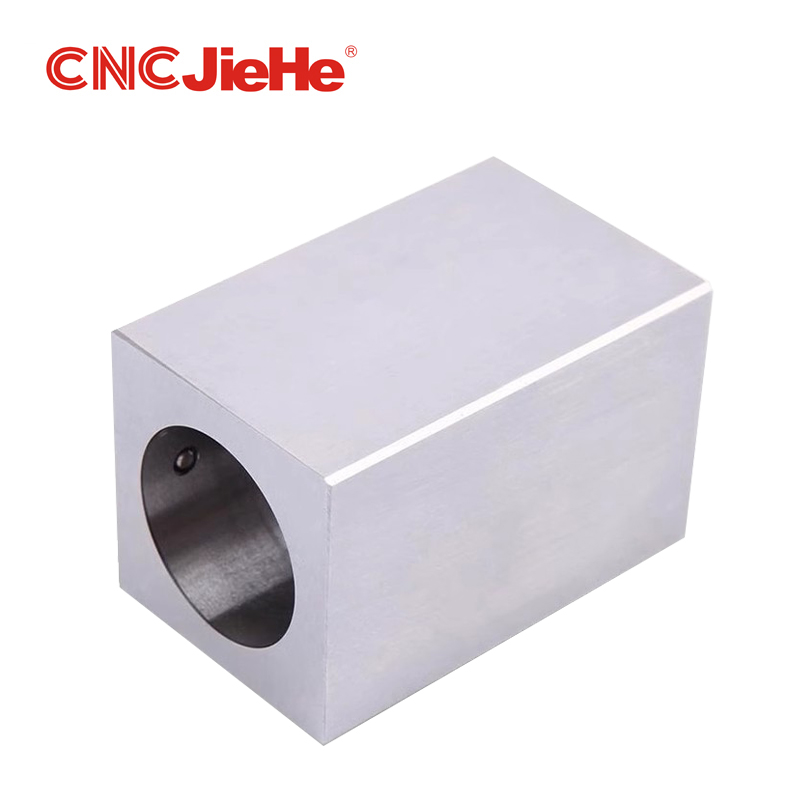

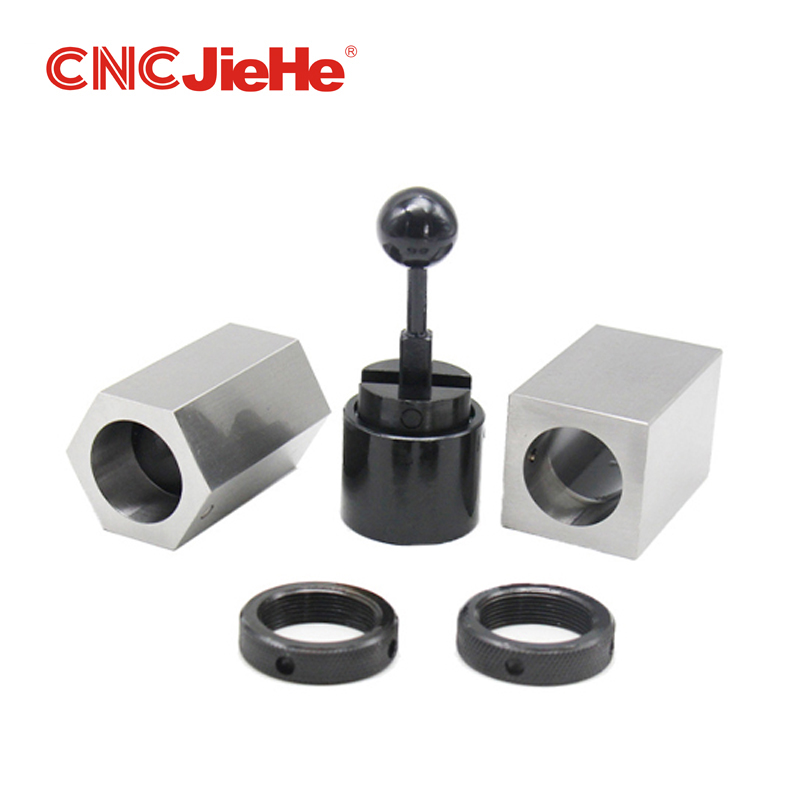

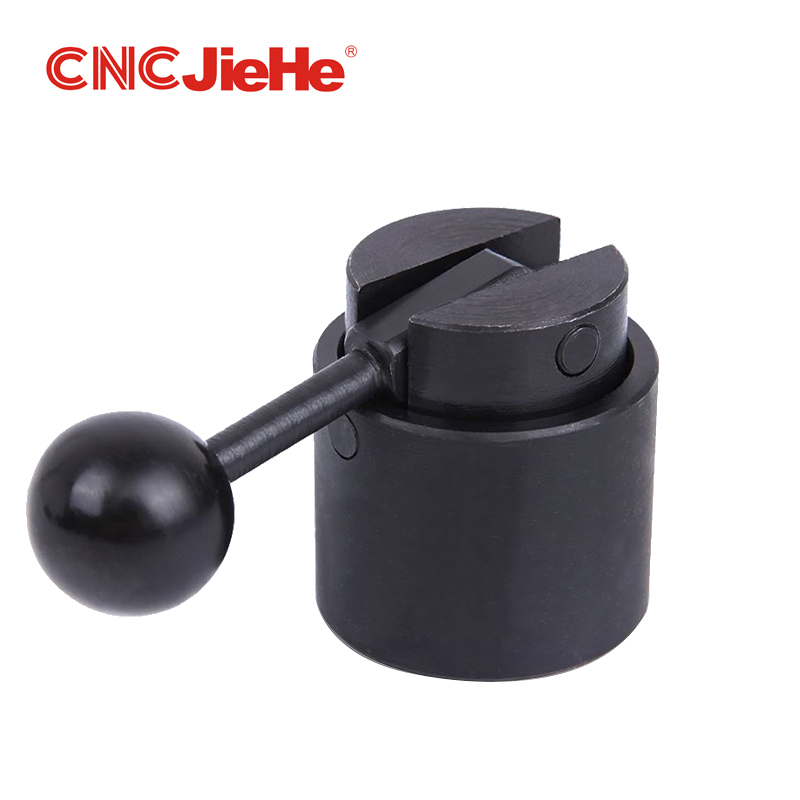

5C Collet block set

Product Description

5C Collet Block Set is a fixture system specially designed for precision machining, which is widely used in lathes, grinders, indexing heads and machining centers. This set usually includes 5C collet chuck with various specifications and matching square/hexagonal clamping blocks, which can quickly clamp cylindrical and hexagonal workpieces and is suitable for high-precision machining and mass production scenes.

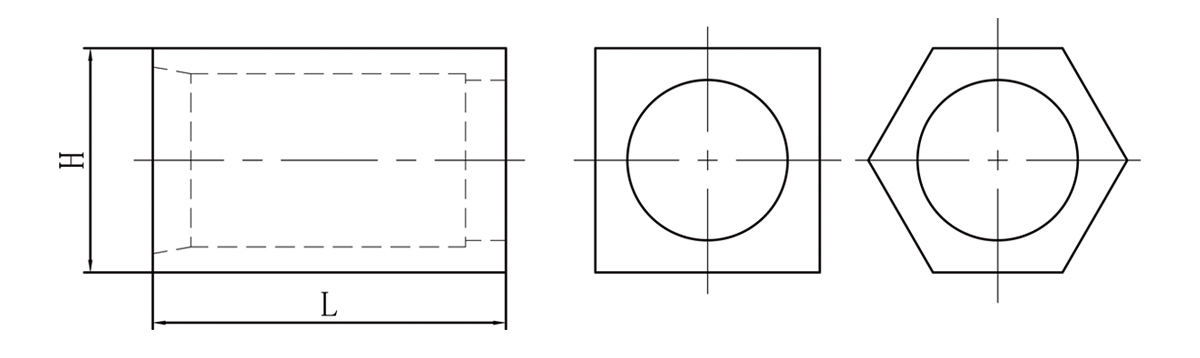

Product Schemat

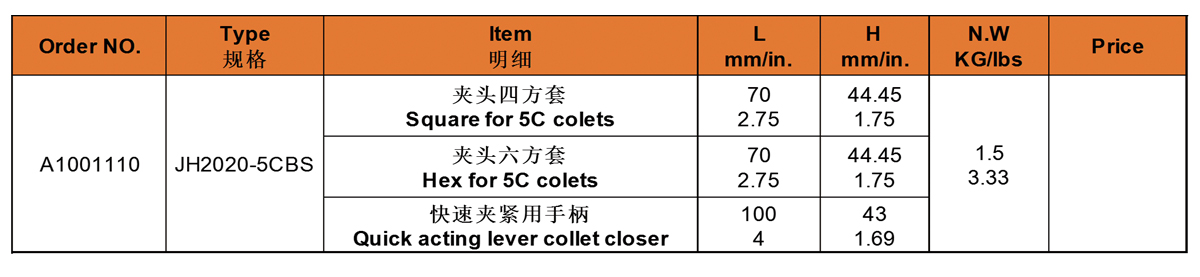

Product Parameter

Product Advantages

The tolerance of the inner hole of the 5C Collet block set collet is strict (usually 0.0005 inch), which ensures the concentricity and clamping stability of the workpiece and reduces the machining vibration. Including 5C collet with different sizes (such as 1/8 "to 1-1/8" inner diameter) and adaptive square/hexagonal block, which supports flexible switching of workpiece shape. The collet adopts heat-treated alloy steel (such as SCM435), and the clamping block is hardened steel, which is wear-resistant and deformation-resistant, and prolongs the service life. The spring sleeve structure design can quickly load and unload the workpiece without tools, and improve the production efficiency. It conforms to the international standard of 5C chuck and adapts to the 5C chuck spindle of most brand machine tools (such as Harding and Haas).

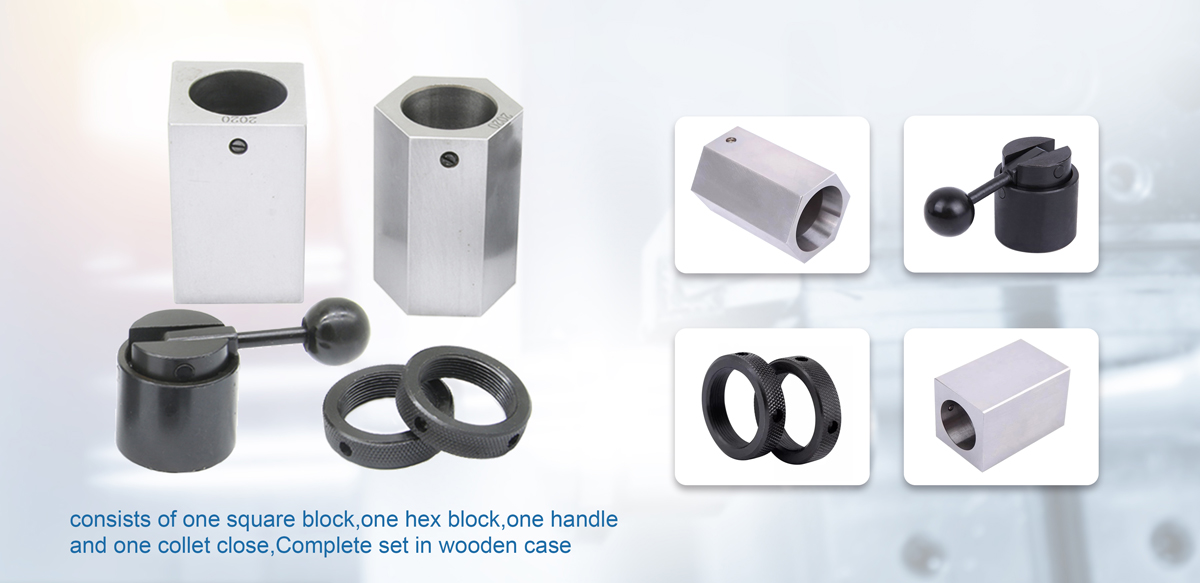

Optional Accessories

Our product offers a variety of optional configurations.   We can meet users' diverse requirements regarding precision and stability.

Quality Inspection

Jiehe Machinery owns a leading tool holder production factory and inspection and testing center in China, with manufacturing capabilities ranking among the top. Our core production and testing equipment include GROB, TAKISAWA, Doosan, HAIMER, KELCH, ZOLLER, Mitutoyo, etc., and we also possess the full range of standard tool holders and tool holder gauges from German Diebold. The use of these equipment further ensures the superiority of our production efficiency and product quality.

We have an intelligent production line, which ensures the stability of product quality and greatly improves production efficiency.

Photographs of Products in the Workshop

Our workshop maintains a robust inventory of semi-finished products, ensuring a steady supply and enabling us to meet tight deadlines with speed and efficiency. With streamlined production processes and a well-organized supply chain, we guarantee quick turnaround times without compromising on quality. Our experienced team and state-of-the-art facilities allow us to respond swiftly to customer demands, offering flexible solutions and fast delivery to keep your operations running smoothly.

Factory Displayment

Jining Jiehe Machinery Co., Ltd., established in 2000, is a national high-tech enterprise and a provincial-level technology-driven and innovative company. Specializing in CNC machine tool accessories, the company offers over 1,000 product varieties, with 60% of products exported. With over 200 CNC machines and a team of more than 100 employees, Jiehe has earned over 30 national patents and is recognized for its well-known trademarks such as CNCJiehe, Sun Moon Lake, and Goose. The company regularly participates in international exhibitions across Beijing, Shanghai, the U.S., Germany, Italy, and Tokyo, building a strong global market presence. By benchmarking top companies in Germany and Japan, Jiehe has achieved rapid development and established a comprehensive production and R&D base with subsidiaries in Jining, Shandong, Suzhou, and beyond.
