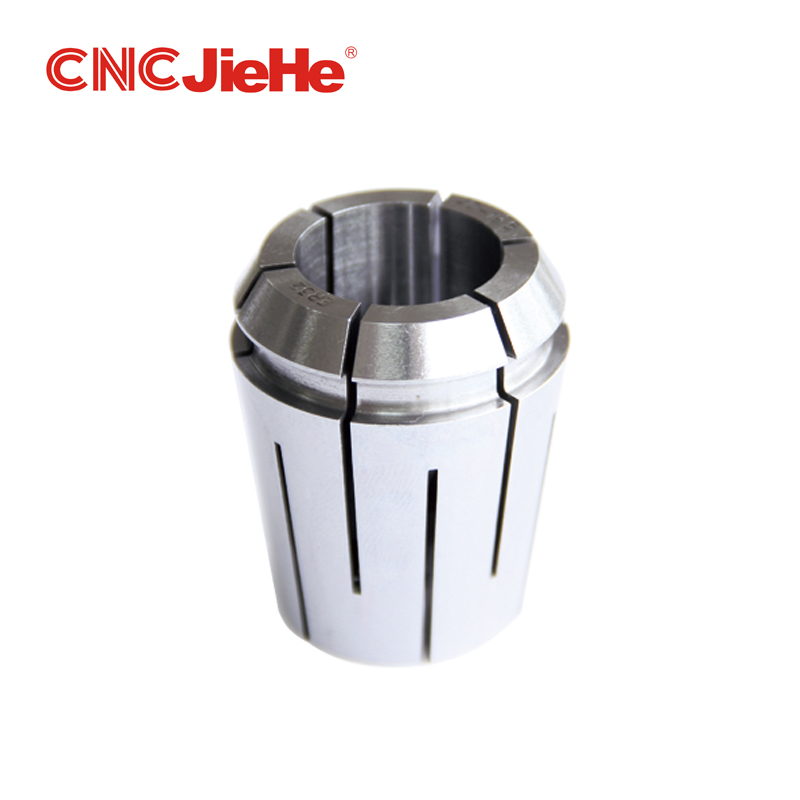

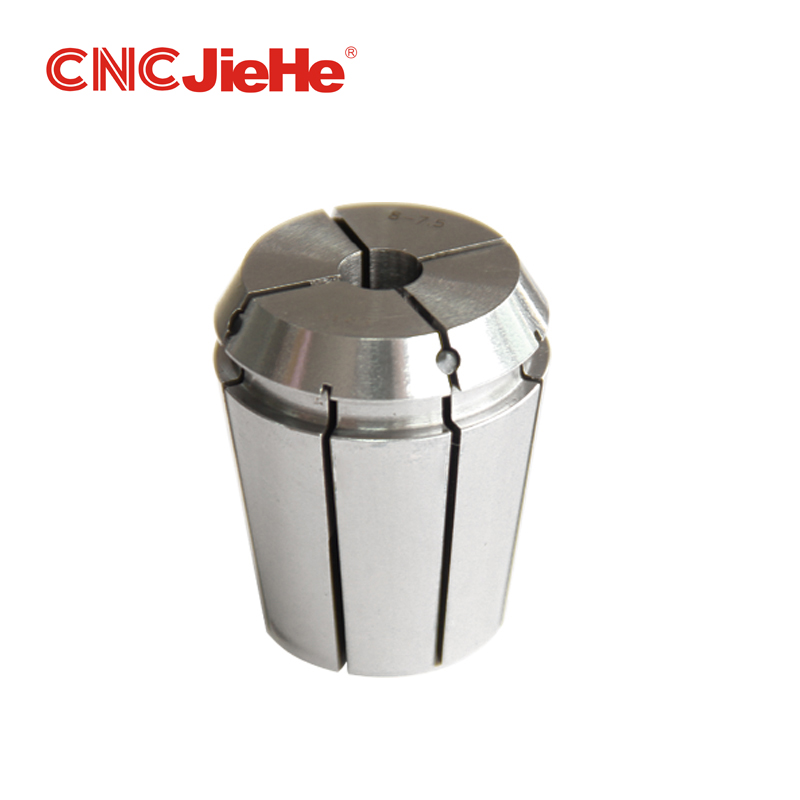

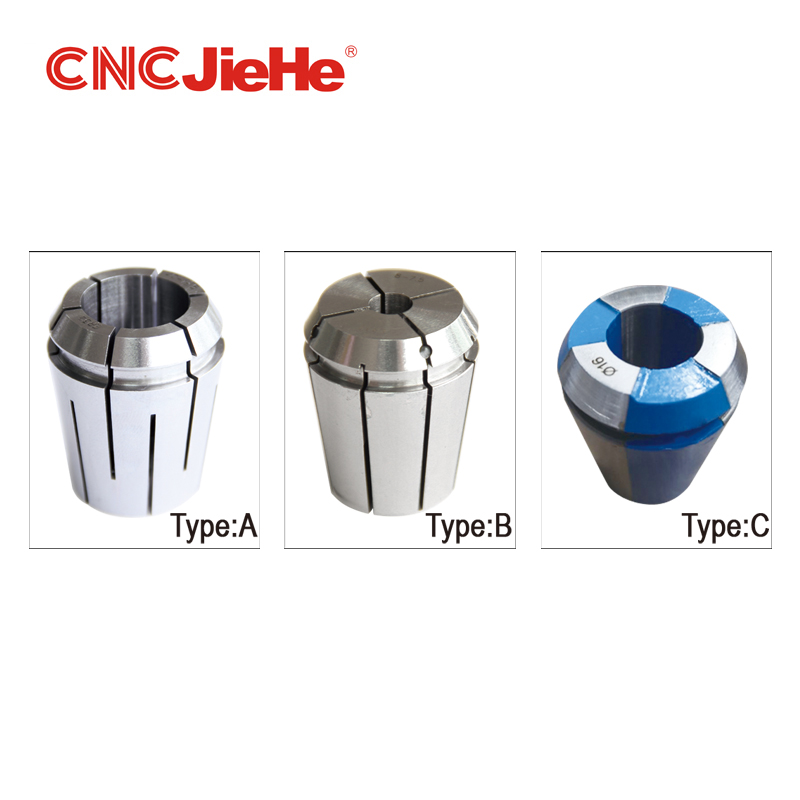

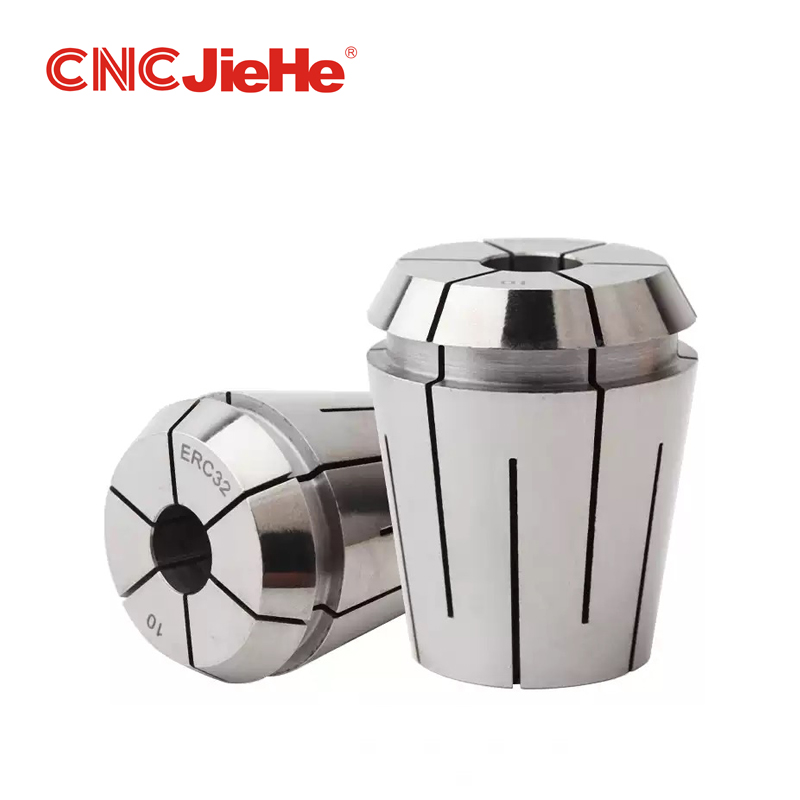

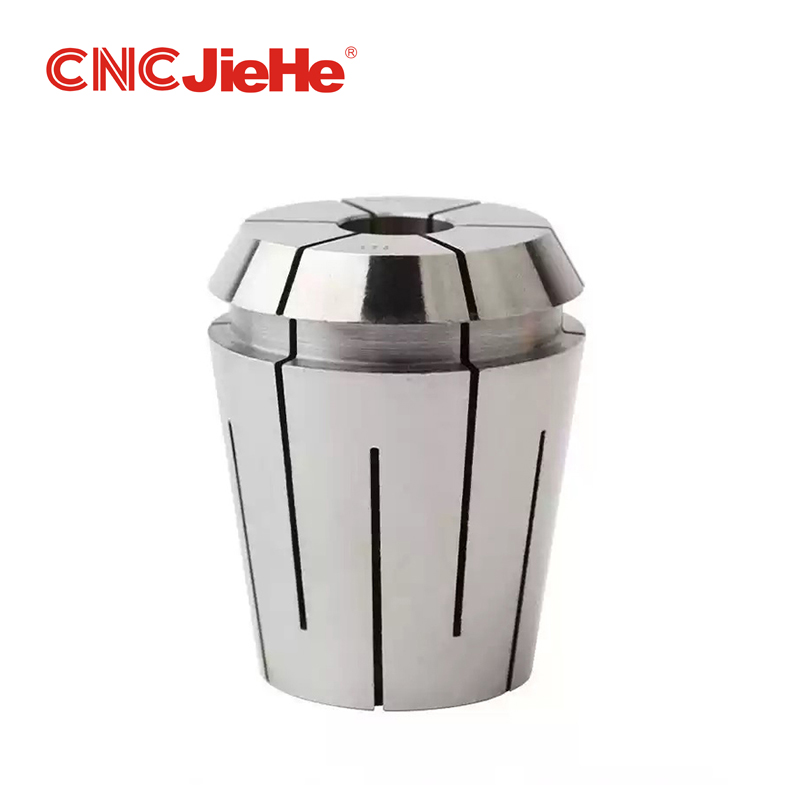

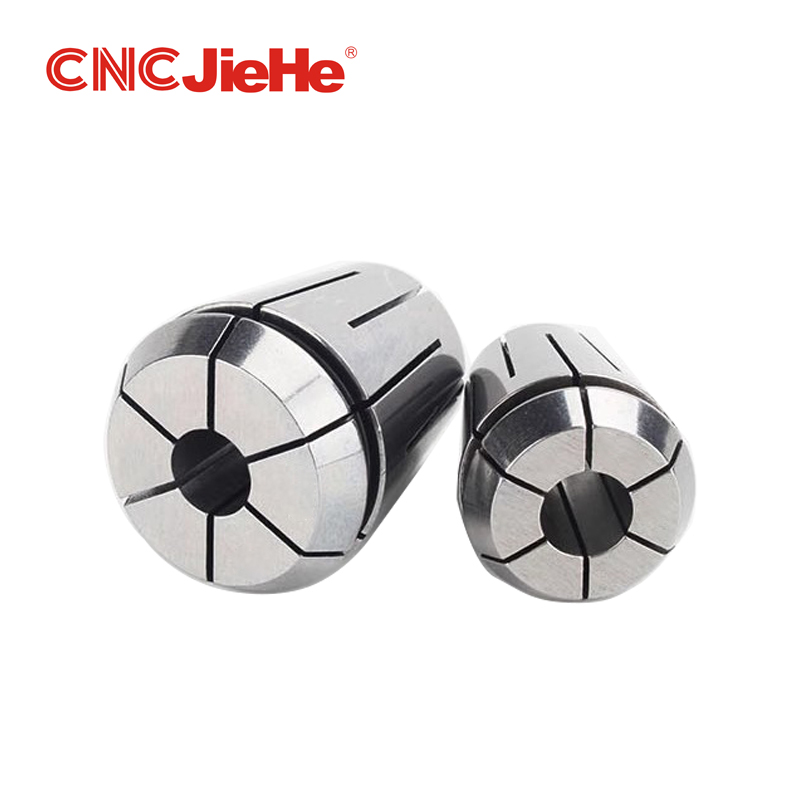

ER Coolant Collet inch

Product Description

ER Coolant Collet inch is a high-precision clamping tool specially designed for English-sized tools, which is widely used in CNC machining centers, milling machines and lathes. Its core feature is the built-in cooling liquid channel, which can directly transport cutting fluid to the cutting area of the tool, significantly improving the machining efficiency, tool life and surface smoothness.

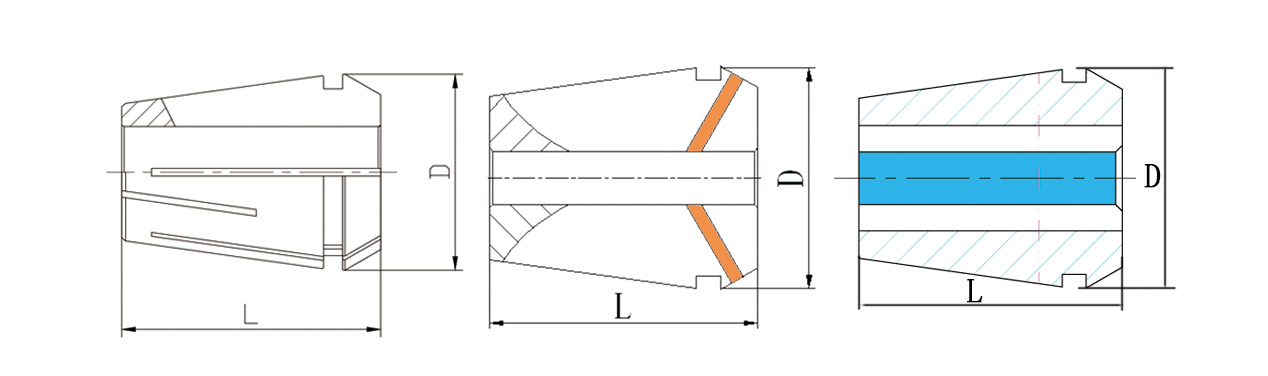

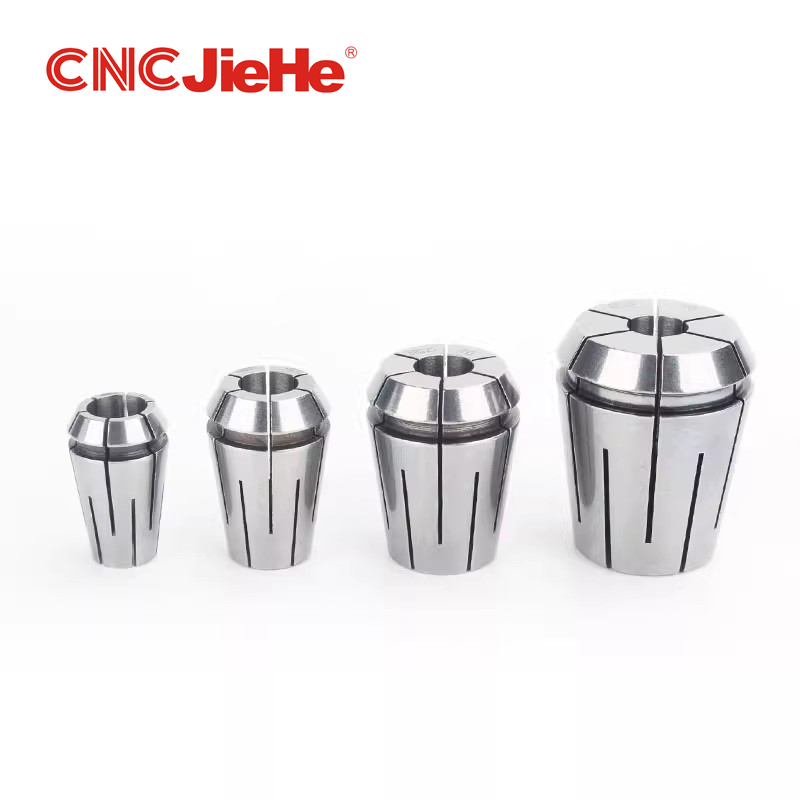

Product Schemat

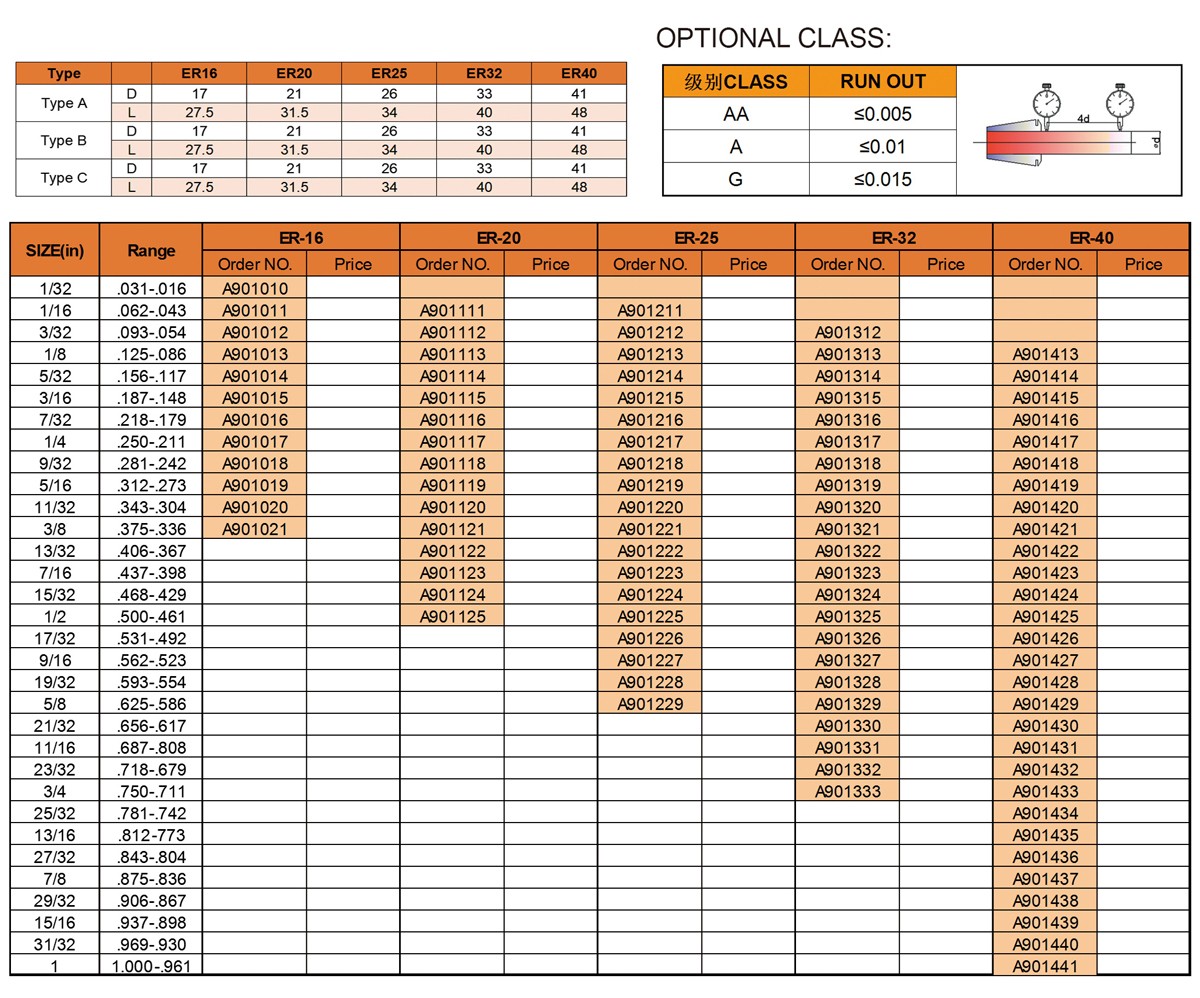

Product Parameter

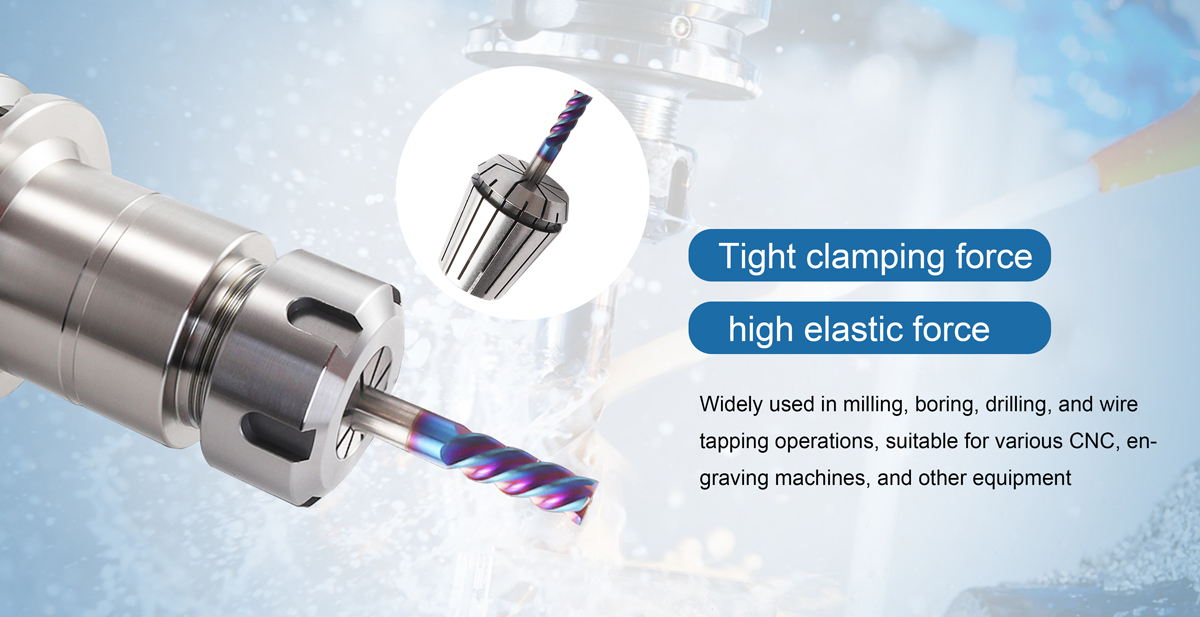

Product Advantages

ER Coolant Collet (English) supports inch tool shank diameters (such as 1/8", 1/4", 3/8", 1/2 ",etc.), adapts to the industrial market dominated by English, such as North America, and is perfectly compatible with the existing English tool system. Coolant channel is integrated in the chuck, and the coolant reaches the tip of the tool, which effectively reduces the cutting temperature and chip accumulation, especially suitable for deep hole machining, hard material cutting and other high-heat working conditions. Material: high-quality spring steel (such as SAE 6150) or stainless steel, after heat treatment and precision grinding, the hardness reaches HRC 58-62. Concentricity: ≤0.0005 inch (about 0.0127mm) to ensure the stability of the tool when it rotates at high speed. Conical contact: 8 cone angle design, evenly distributing locking force, reducing chuck deformation. Special sealing groove and O-ring design (some high-end models) prevent coolant leakage and ensure the stable operation of high-pressure cooling system.

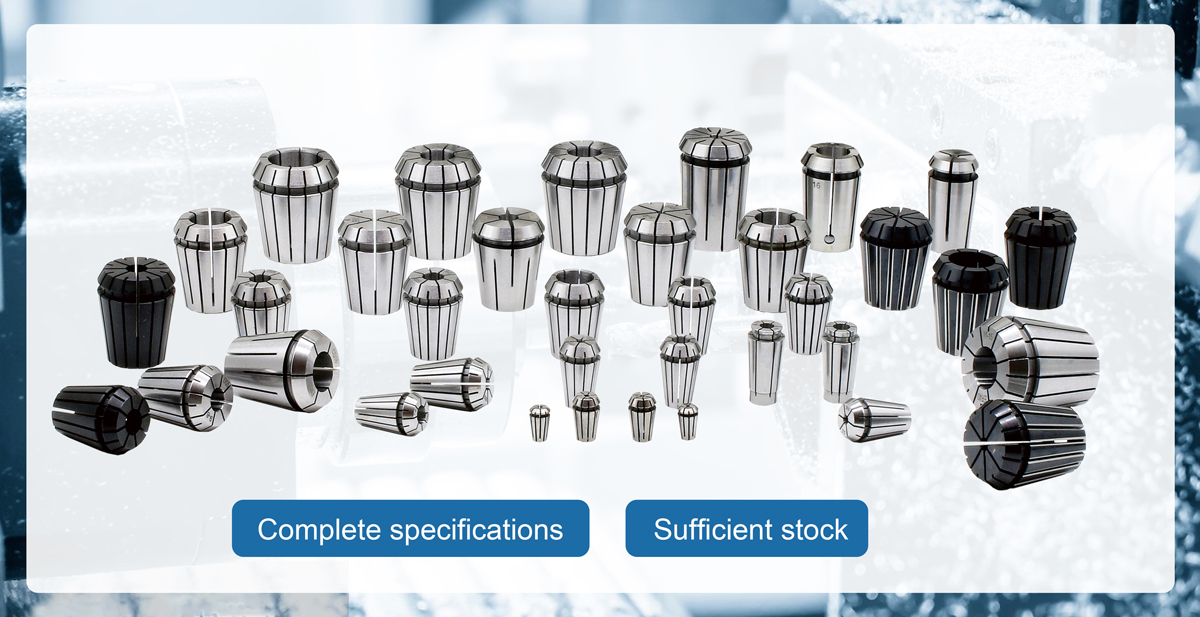

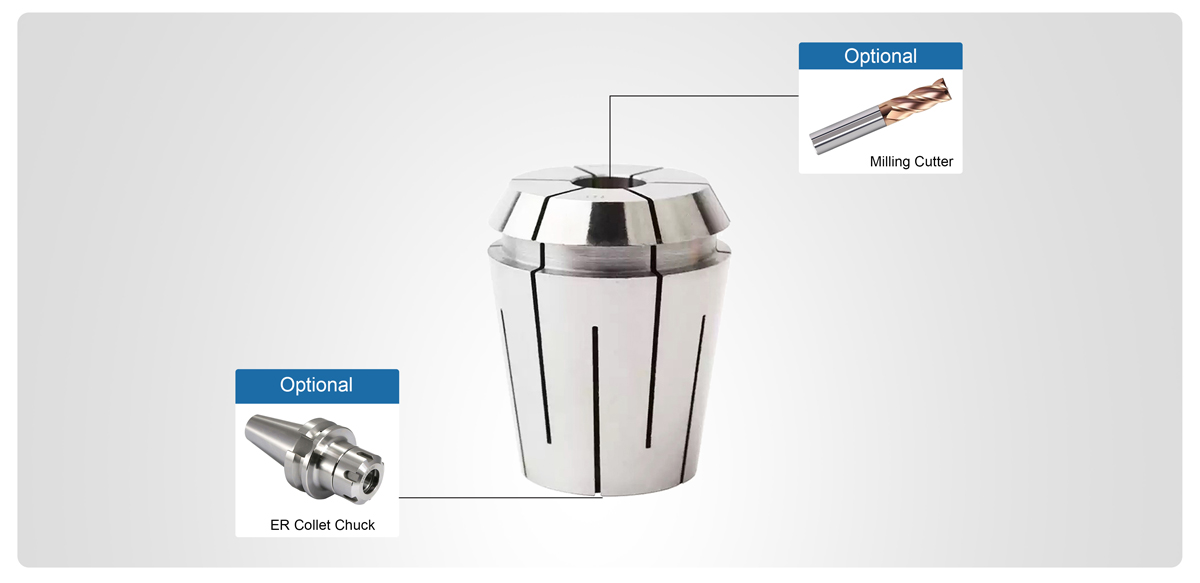

Optional Accessories

Our product offers a variety of optional configurations. Optional accessories such as ER  Collet Chuck and Milling Cutter ，  we can meet users' diverse requirements regarding precision and stability.

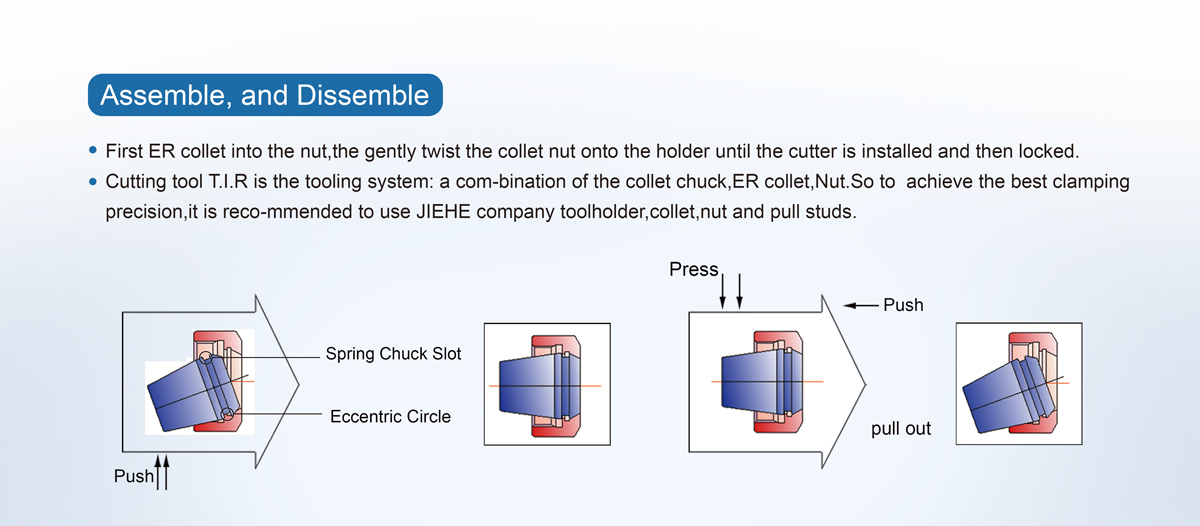

The installation steps of an ER Coolant Collet

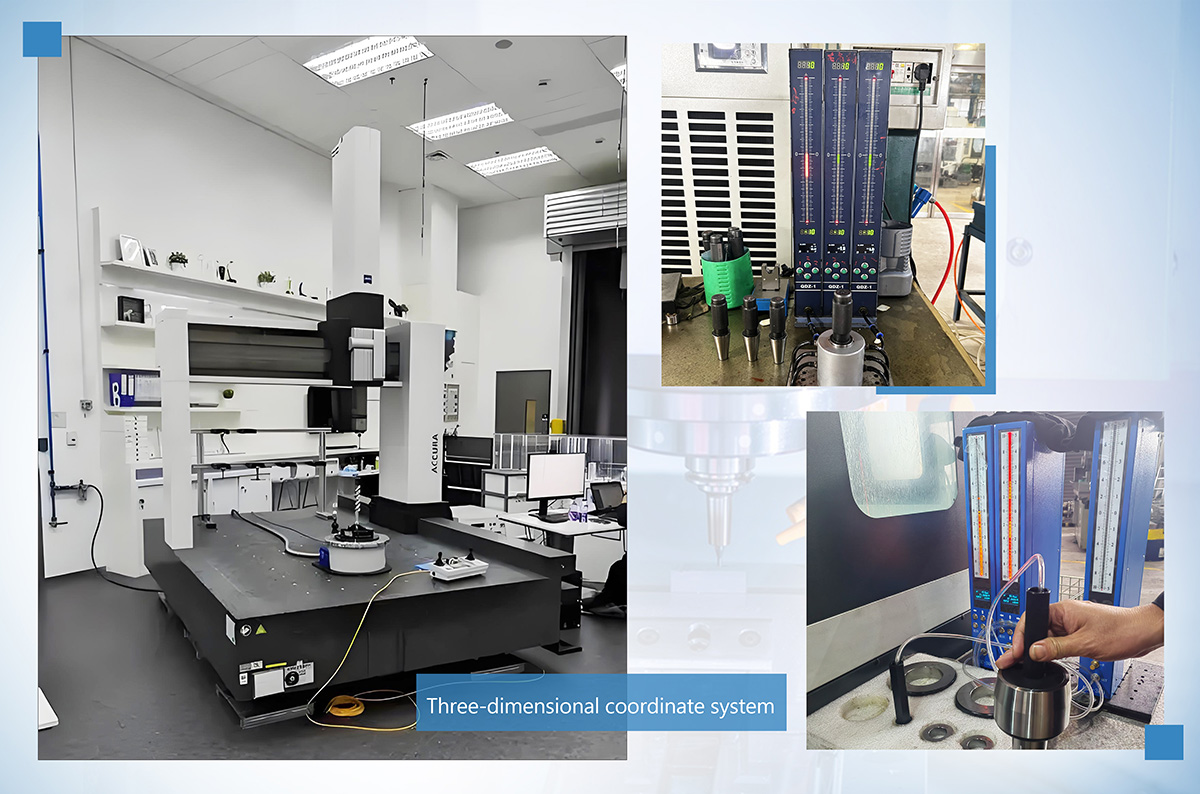

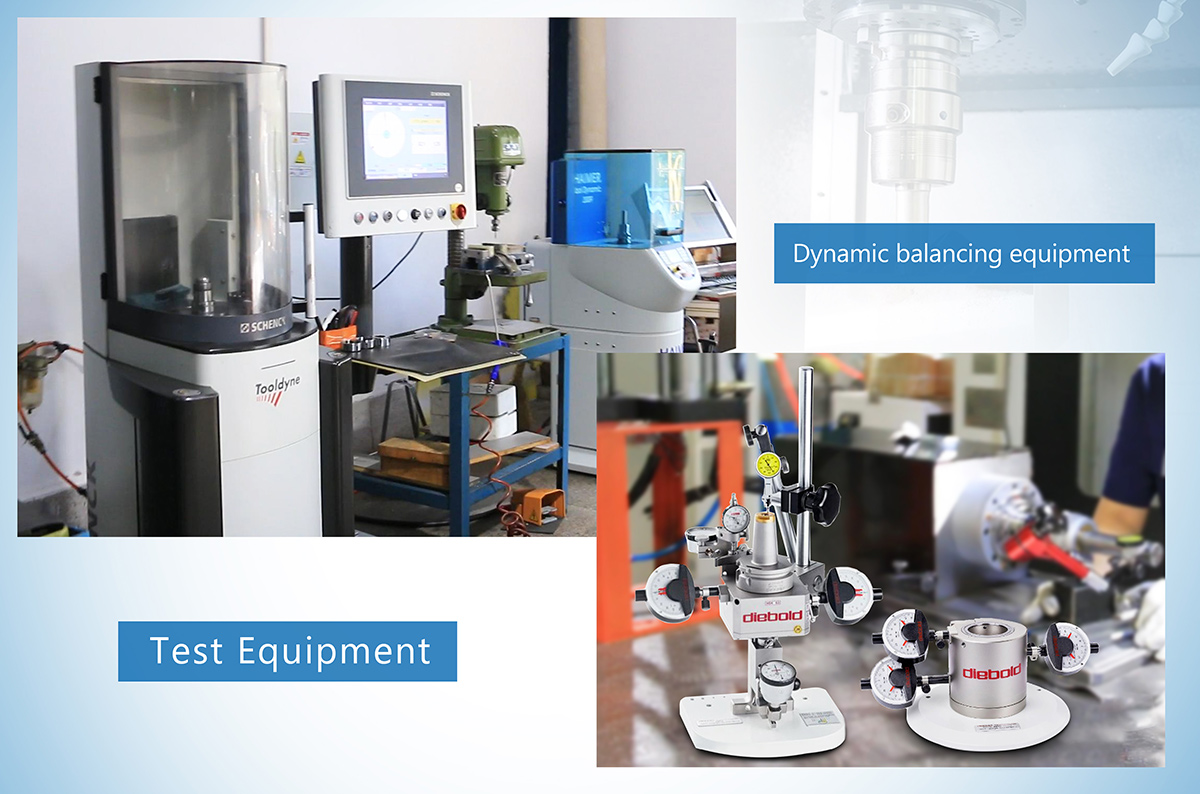

Quality Inspection

Jiehe Machinery owns a leading tool holder production factory and inspection and testing center in China, with manufacturing capabilities ranking among the top. Our core production and testing equipment include GROB, TAKISAWA, Doosan, HAIMER, KELCH, ZOLLER, Mitutoyo, etc., and we also possess the full range of standard tool holders and tool holder gauges from German Diebold. The use of these equipment further ensures the superiority of our production efficiency and product quality.

We have an intelligent production line, which ensures the stability of product quality and greatly improves production efficiency.

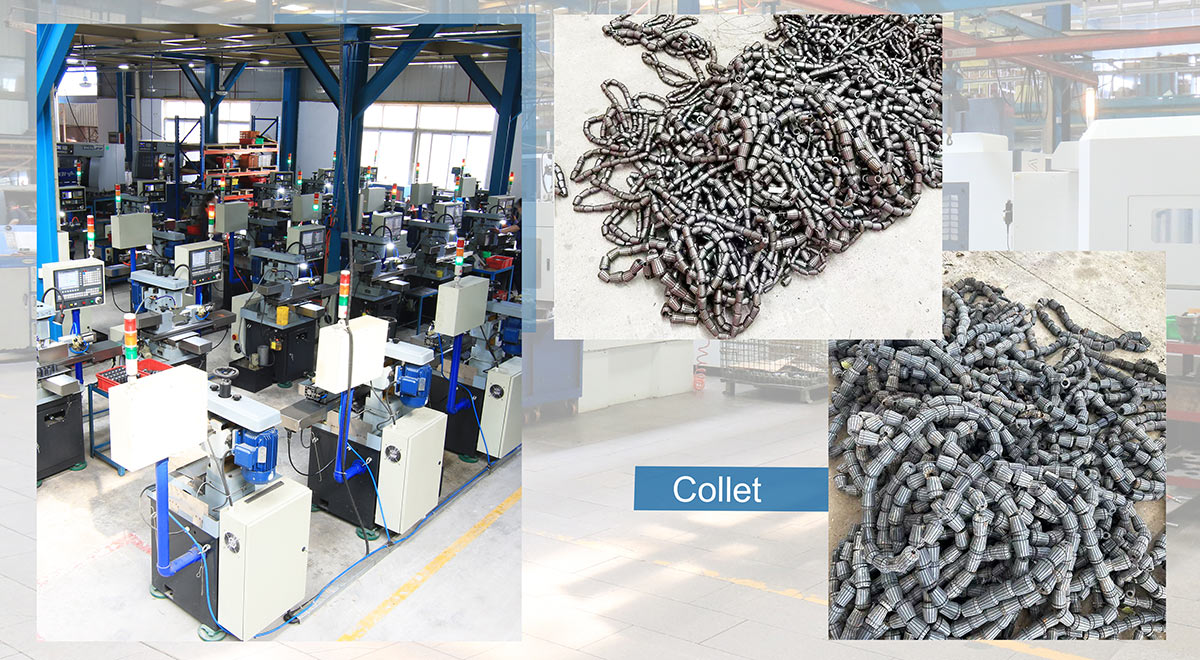

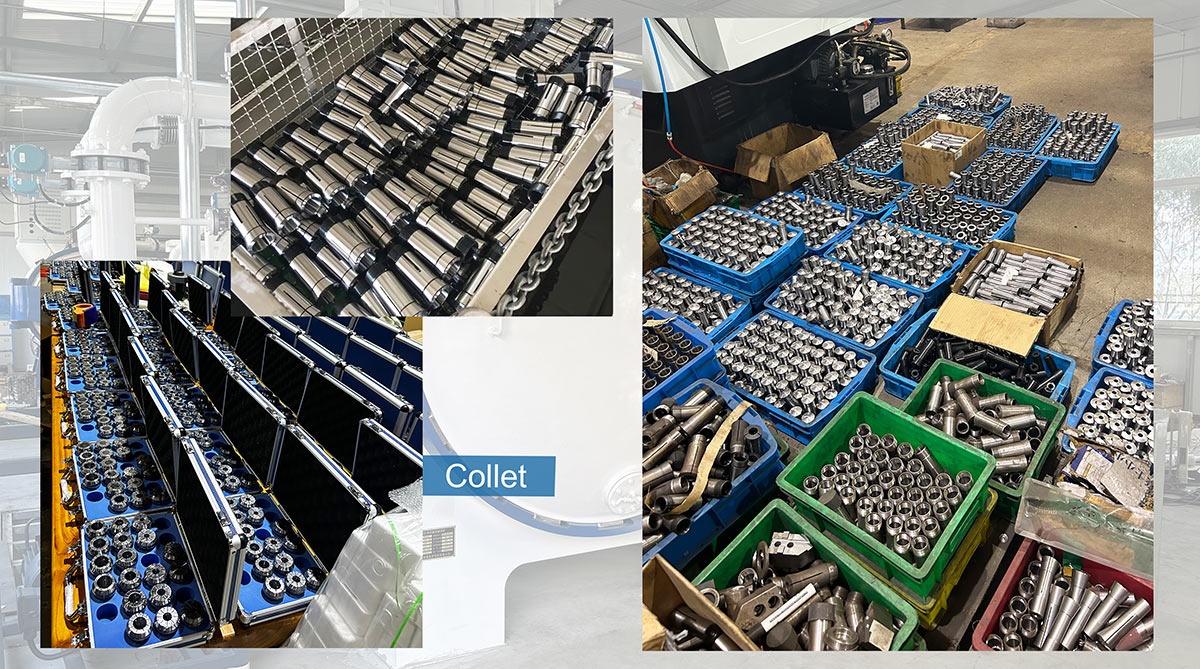

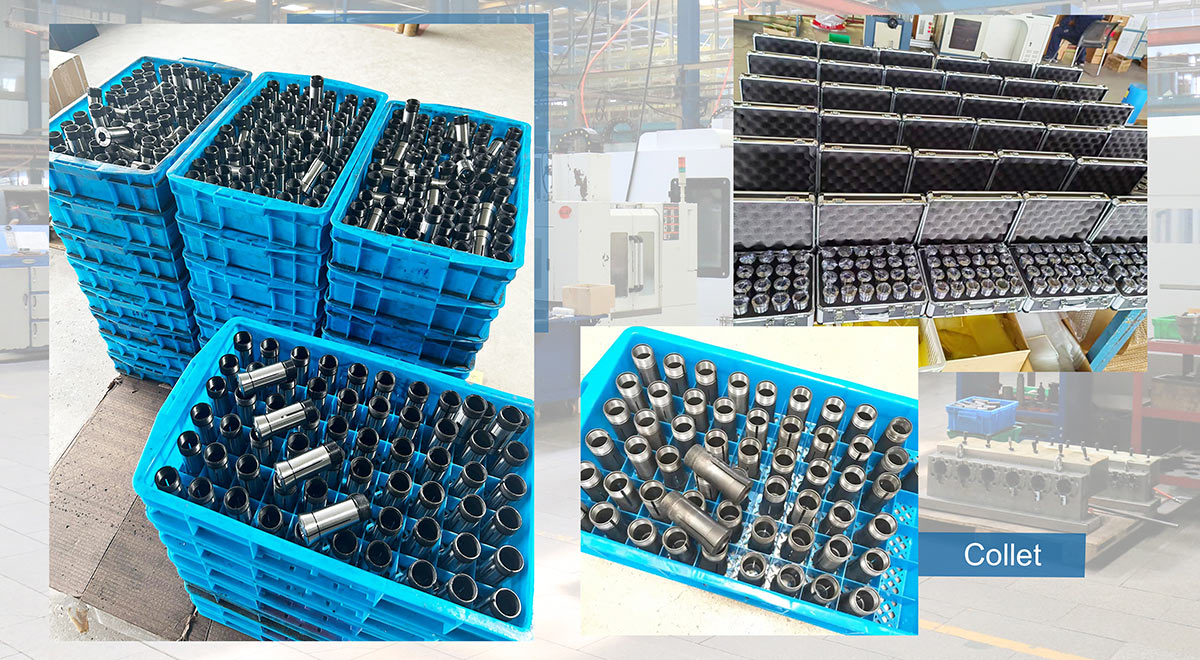

Photographs of Products in the Workshop

Our workshop maintains a robust inventory of semi-finished products, ensuring a steady supply and enabling us to meet tight deadlines with speed and efficiency. With streamlined production processes and a well-organized supply chain, we guarantee quick turnaround times without compromising on quality. Our experienced team and state-of-the-art facilities allow us to respond swiftly to customer demands, offering flexible solutions and fast delivery to keep your operations running smoothly.

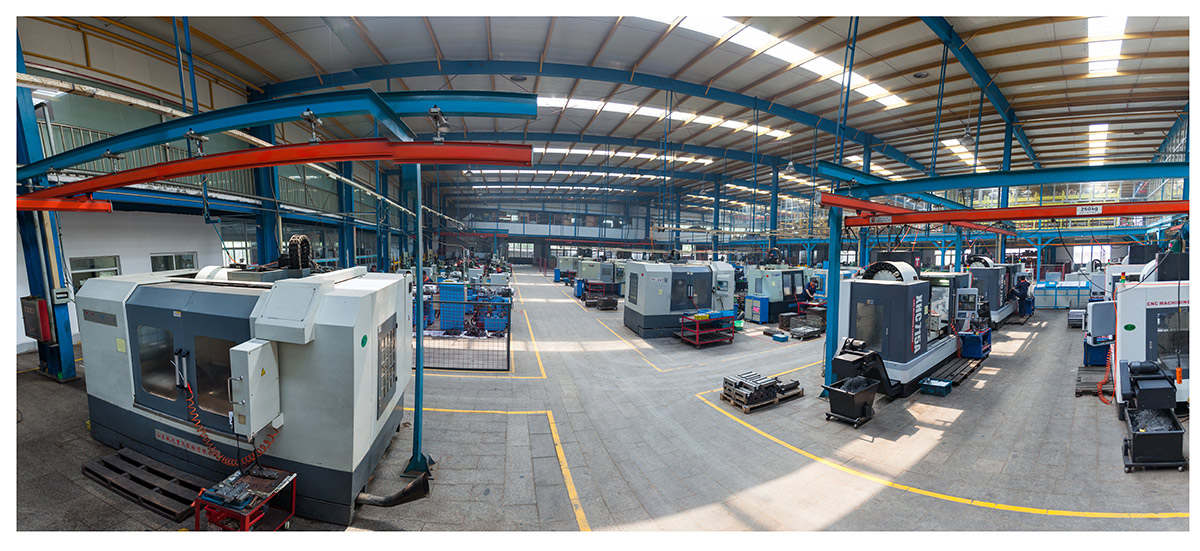

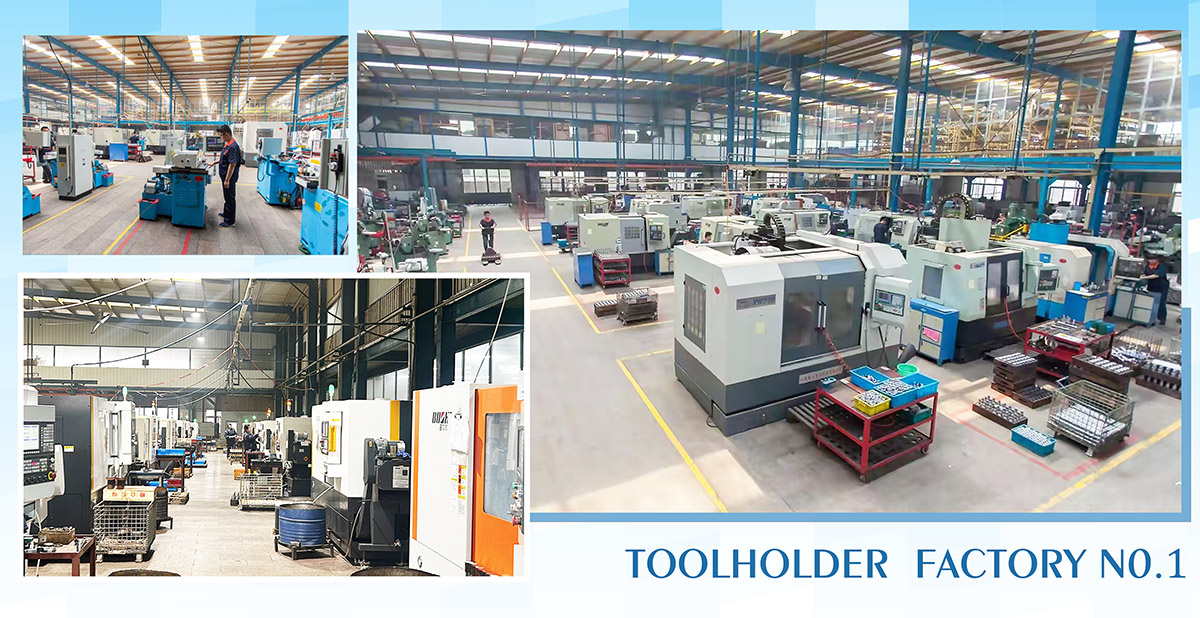

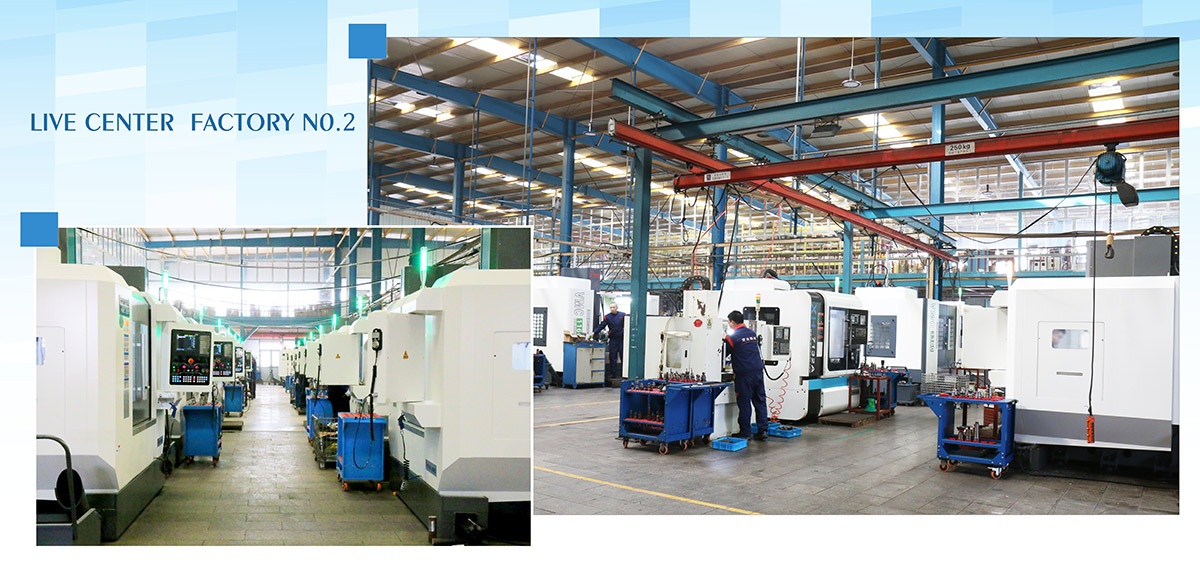

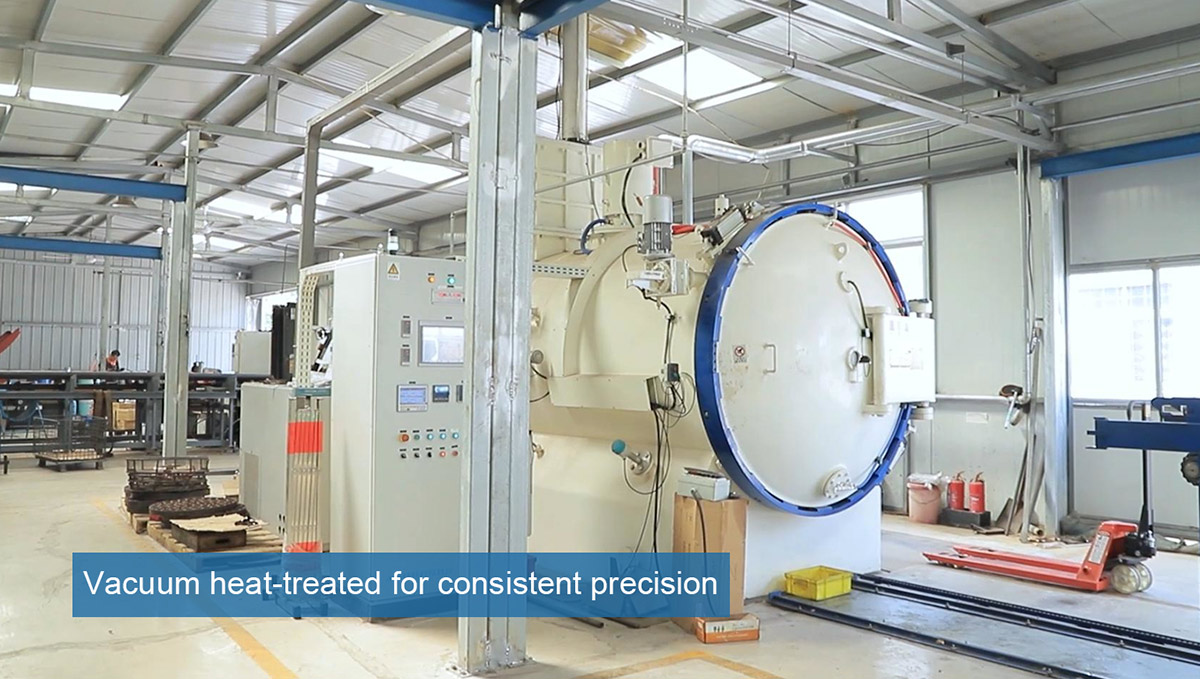

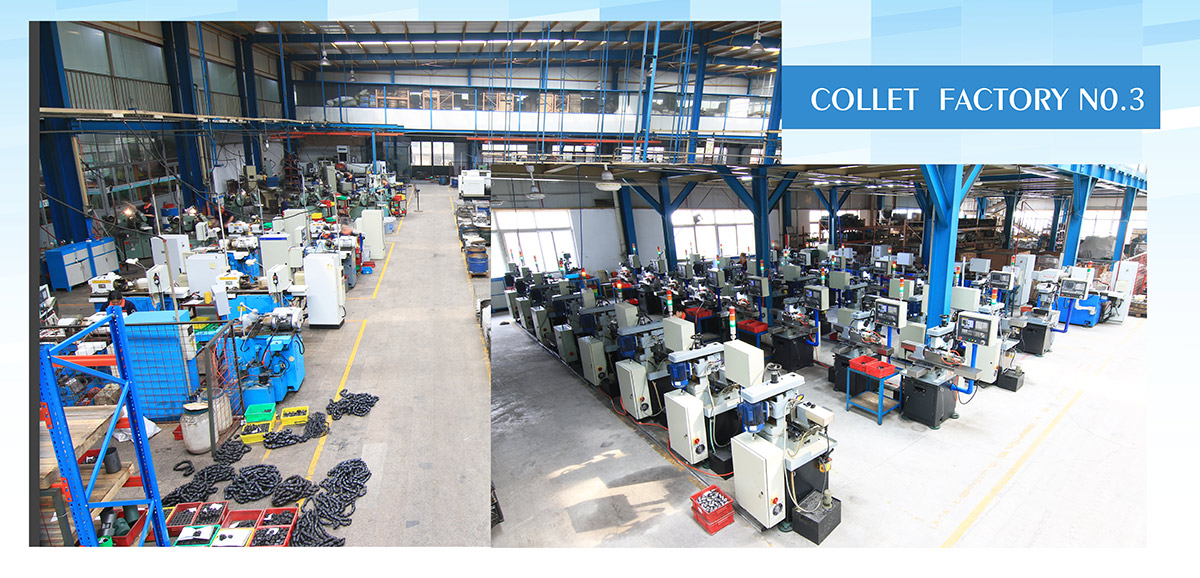

Factory Displayment

Jining Jiehe Machinery Co., Ltd., established in 2000, is a national high-tech enterprise and a provincial-level technology-driven and innovative company. Specializing in CNC machine tool accessories, the company offers over 1,000 product varieties, with 60% of products exported. With over 200 CNC machines and a team of more than 100 employees, Jiehe has earned over 30 national patents and is recognized for its well-known trademarks such as CNCJiehe, Sun Moon Lake, and Goose. The company regularly participates in international exhibitions across Beijing, Shanghai, the U.S., Germany, Italy, and Tokyo, building a strong global market presence. By benchmarking top companies in Germany and Japan, Jiehe has achieved rapid development and established a comprehensive production and R&D base with subsidiaries in Jining, Shandong, Suzhou, and beyond.
