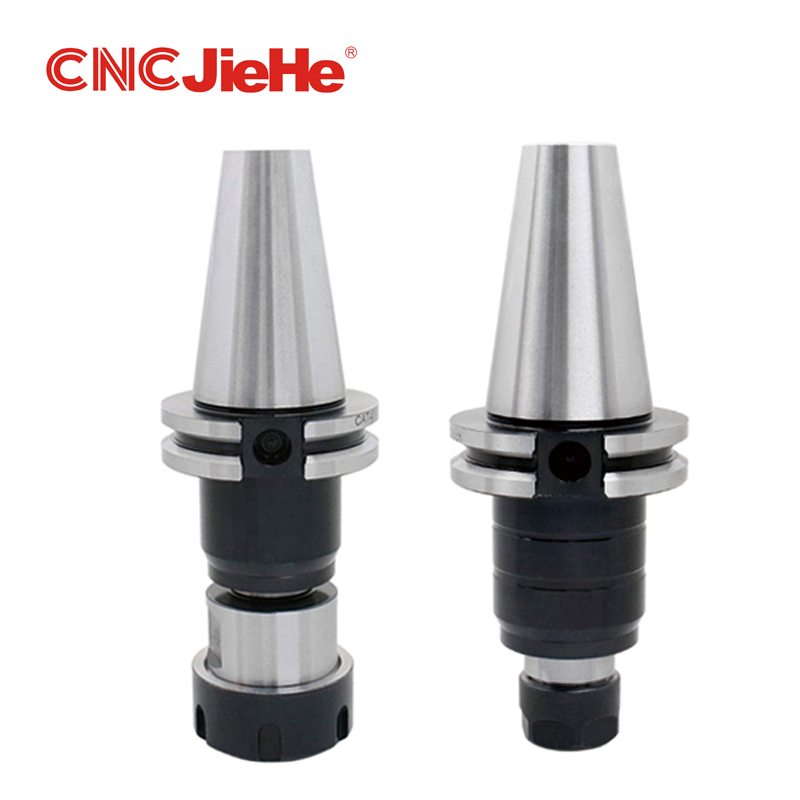

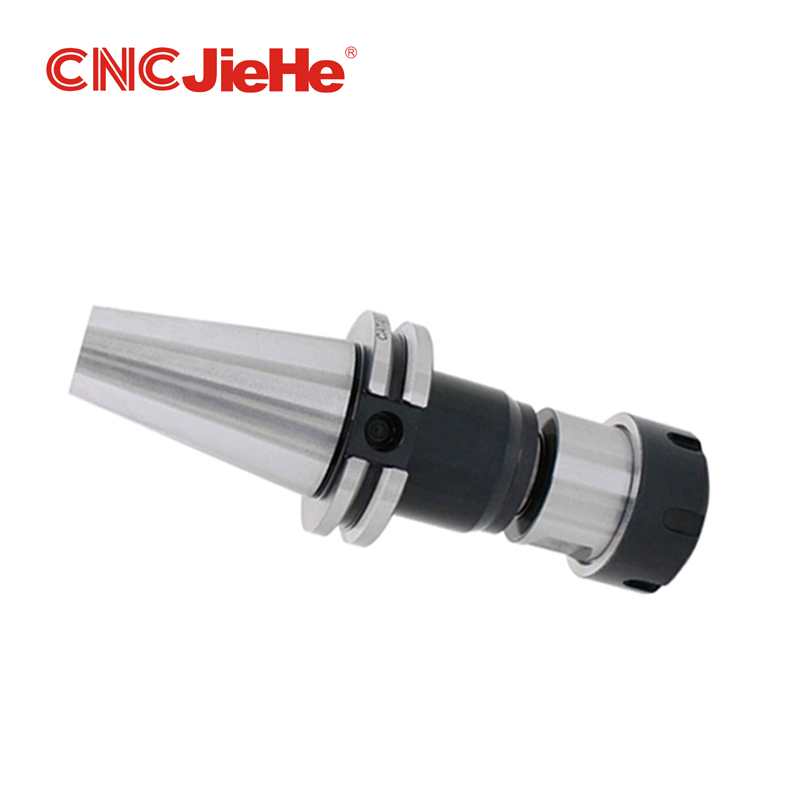

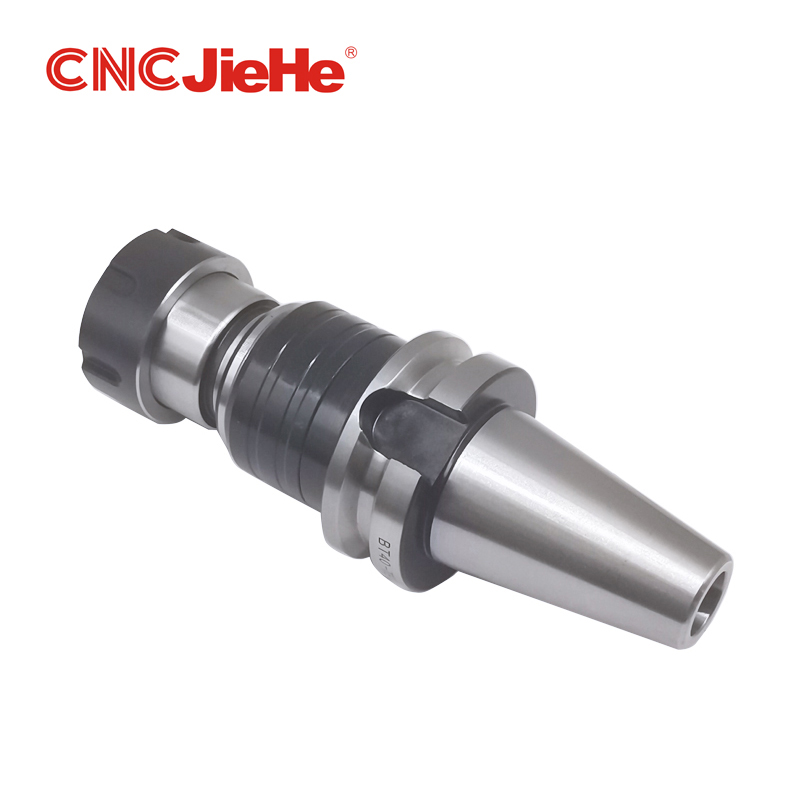

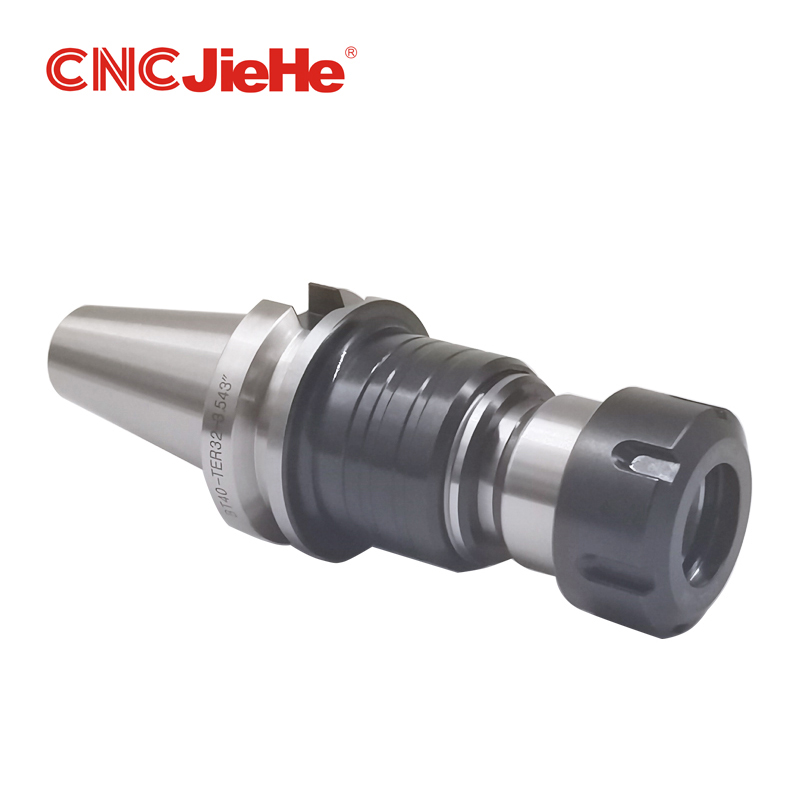

ER floating Tap Collet chuck

Product Description

The ER collet chuck is a precision clamping component widely used in mechanical machining, designed in compliance with the DIN 6499 standard. It is primarily utilized in CNC machines, machining centers, lathes, and other equipment to achieve rapid, high-precision clamping of tools or workpieces when paired with ER collets. Its modular design and broad compatibility make it an indispensable tool in modern manufacturing.

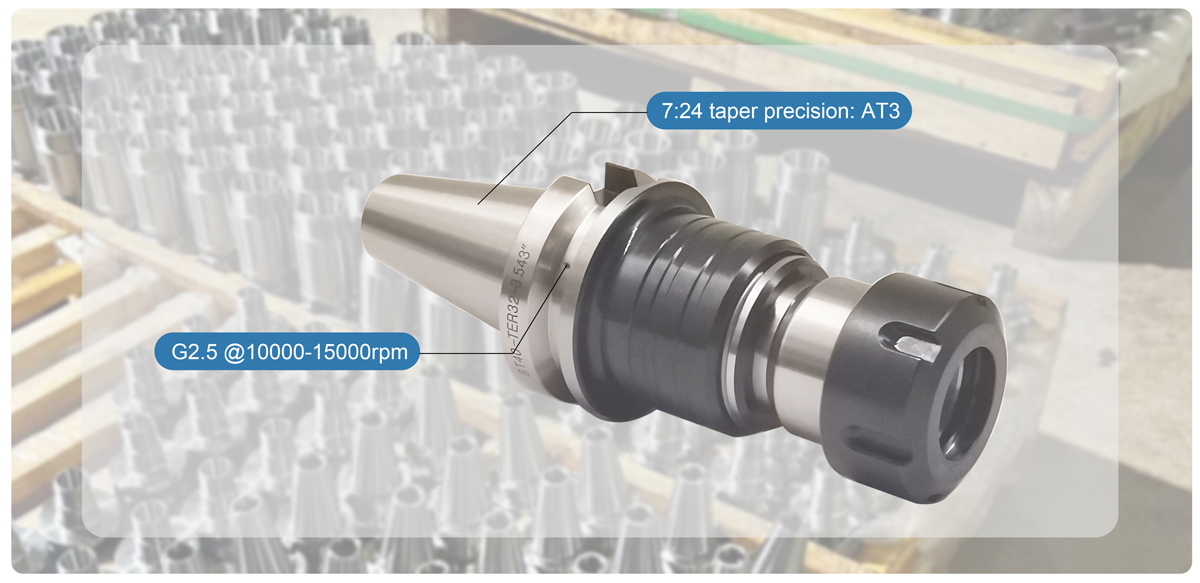

Product Schematic

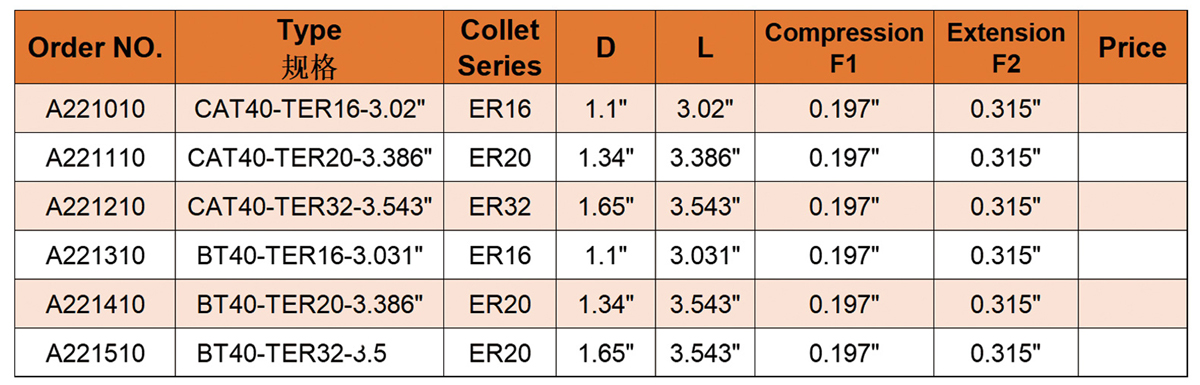

Product Parameter

Why Choose JieHe

Our ER collet is made of high-quality alloy steel. After heat treatment and precision grinding, the clamping concentricity is ensured to be less than ≤0.01mm, which is suitable for high-precision machining requirements, supports a variety of clamping diameters (for example, the clamping range of ER-20 collet is 1-13mm), and is suitable for various tools such as drills, milling cutters and taps. Our unique elastic groove design provides uniform radial clamping force to prevent the tool from slipping or shifting during machining.

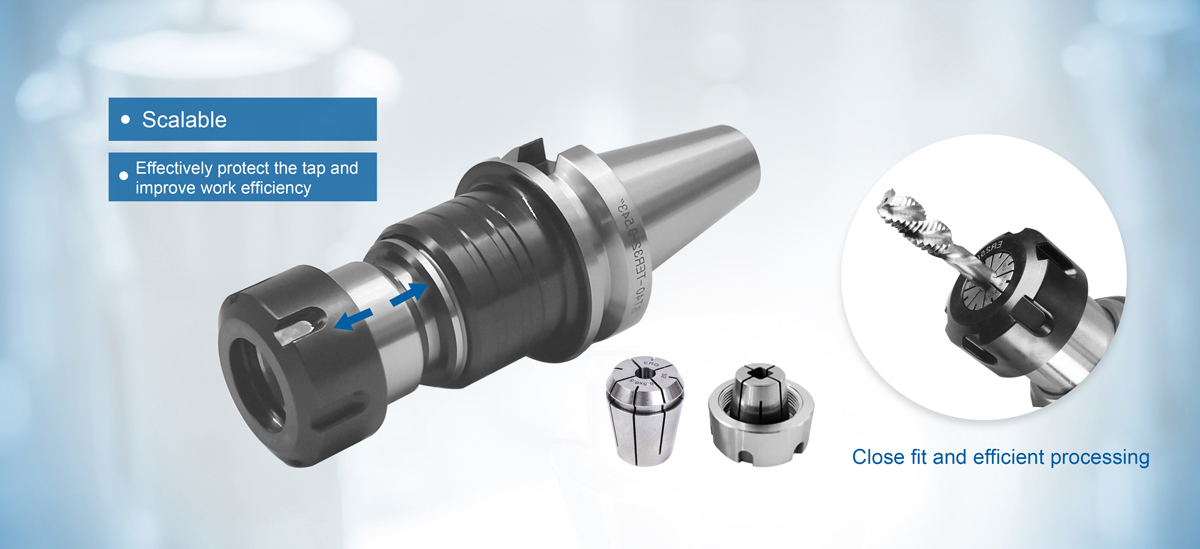

Product Advantages

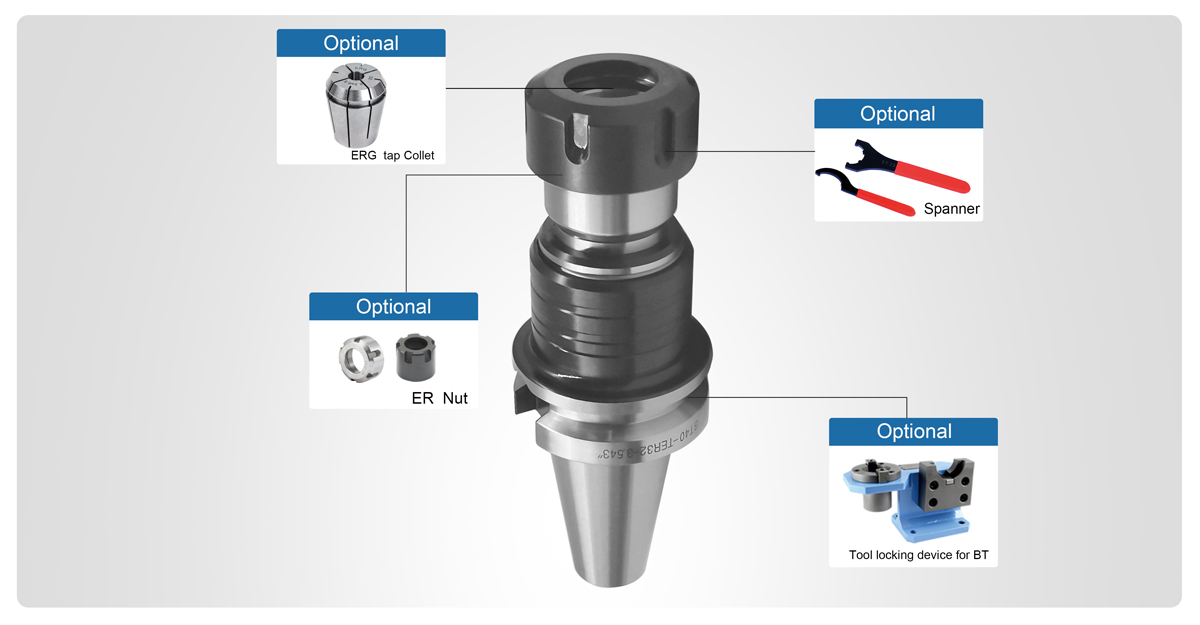

Optional Accessories

Our product offers a variety of optional configurations. Optional accessories such as  tool locking device for BT and ER  Nut ，we can meet users' diverse requirements regarding precision and stability. Additionally, a wrench is provided to assist users with product installation and maintenance, enabling personalized product configurations.

The installation steps of an ER collet chuck

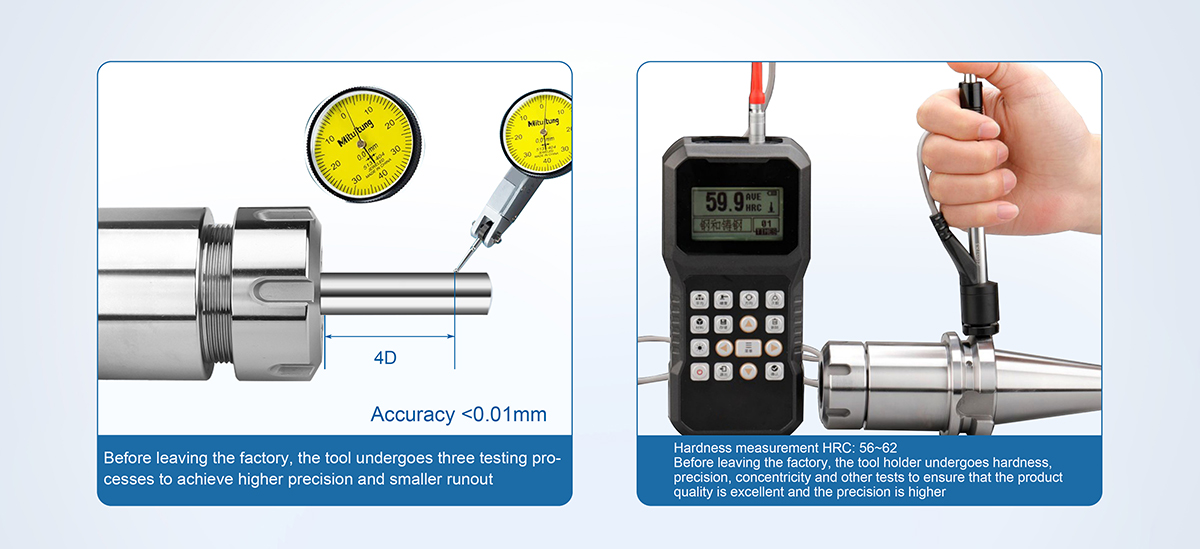

Quality Inspection

Jiehe Machinery owns a leading tool holder production factory and inspection and testing center in China, with manufacturing capabilities ranking among the top. Our core production and testing equipment include GROB, TAKISAWA, Doosan, HAIMER, KELCH, ZOLLER, Mitutoyo, etc., and we also possess the full range of standard tool holders and tool holder gauges from German Diebold. The use of these equipment further ensures the superiority of our production efficiency and product quality.

We have an intelligent production line, which ensures the stability of product quality and greatly improves production efficiency.

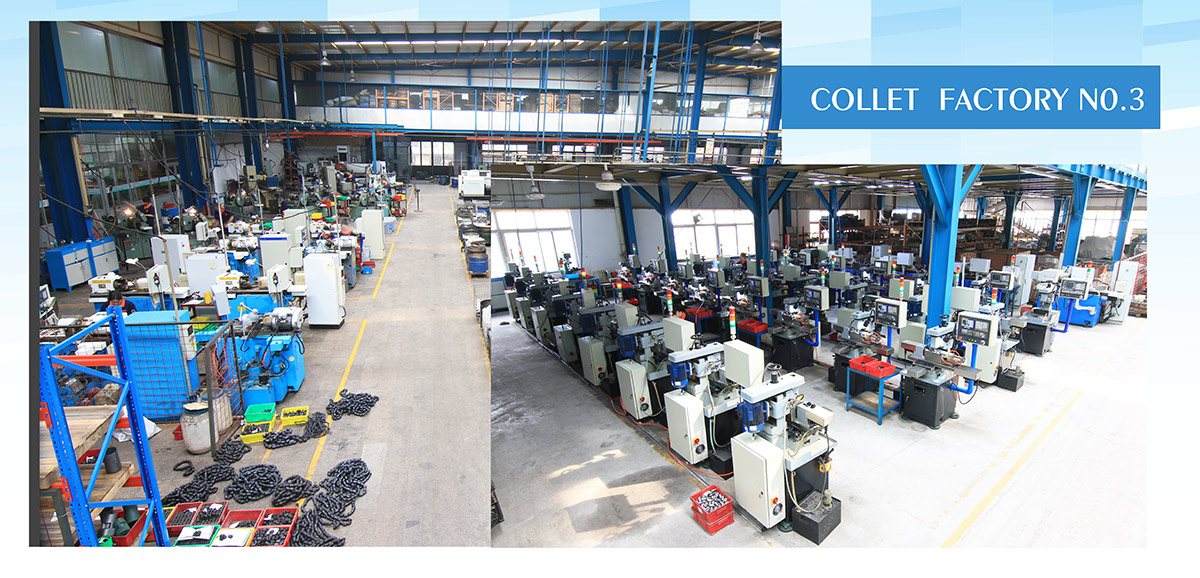

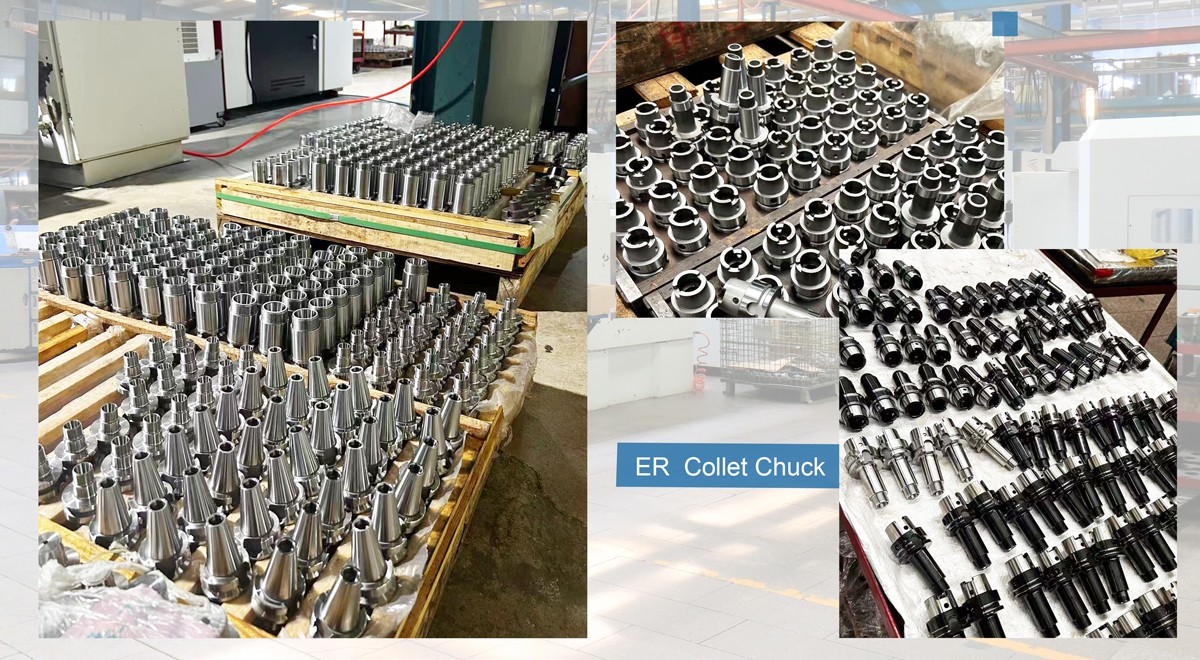

Photographs of Products in the Workshop

Our workshop maintains a robust inventory of semi-finished products, ensuring a steady supply and enabling us to meet tight deadlines with speed and efficiency. With streamlined production processes and a well-organized supply chain, we guarantee quick turnaround times without compromising on quality. Our experienced team and state-of-the-art facilities allow us to respond swiftly to customer demands, offering flexible solutions and fast delivery to keep your operations running smoothly.

Factory Displayment

Jining Jiehe Machinery Co., Ltd., established in 2000, is a national high-tech enterprise and a provincial-level technology-driven and innovative company. Specializing in CNC machine tool accessories, the company offers over 1,000 product varieties, with 60% of products exported. With over 200 CNC machines and a team of more than 100 employees, Jiehe has earned over 30 national patents and is recognized for its well-known trademarks such as CNCJiehe, Sun Moon Lake, and Goose. The company regularly participates in international exhibitions across Beijing, Shanghai, the U.S., Germany, Italy, and Tokyo, building a strong global market presence. By benchmarking top companies in Germany and Japan, Jiehe has achieved rapid development and established a comprehensive production and R&D base with subsidiaries in Jining, Shandong, Suzhou, and beyond.
