HSK Slim Type

Product Description

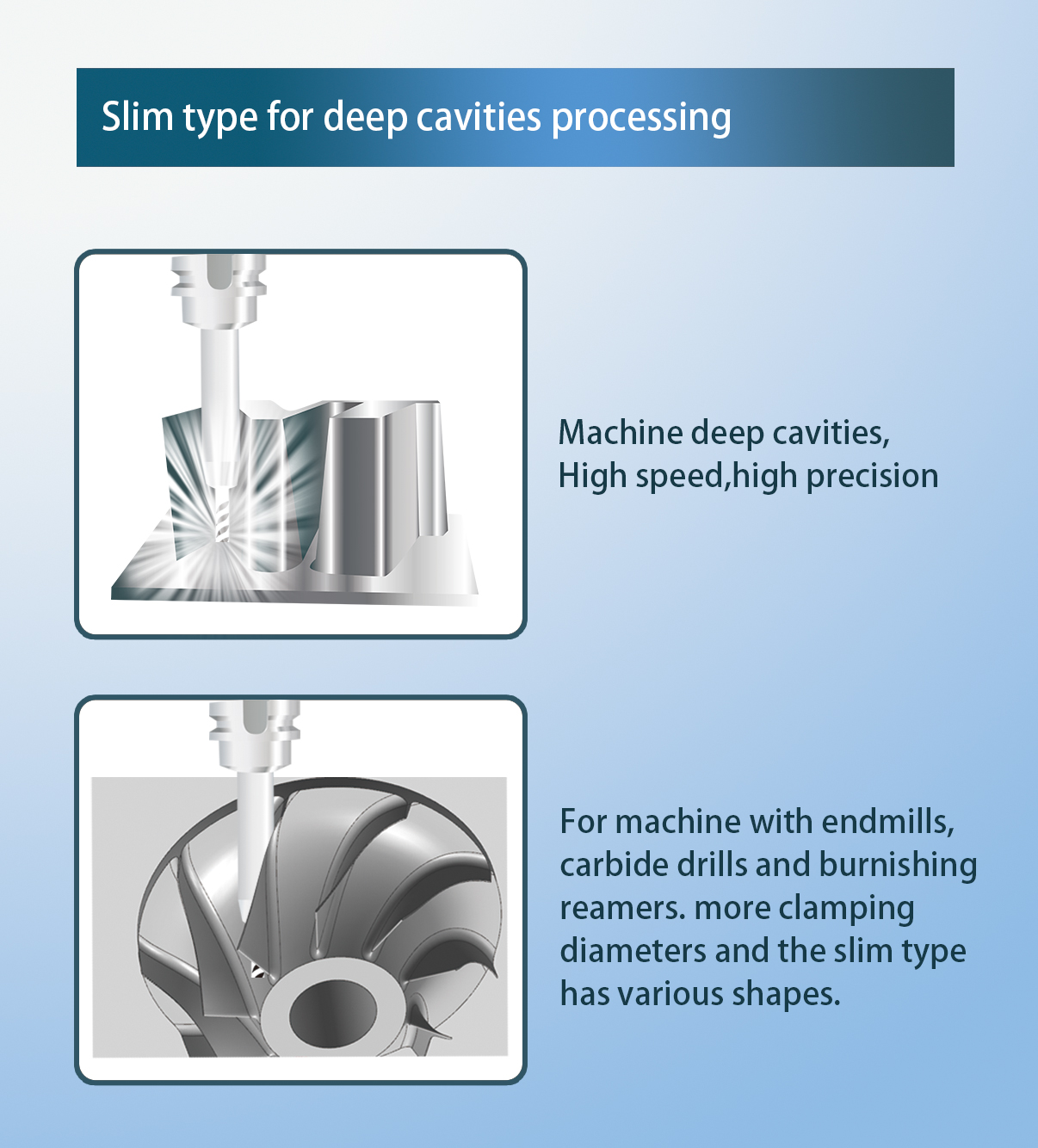

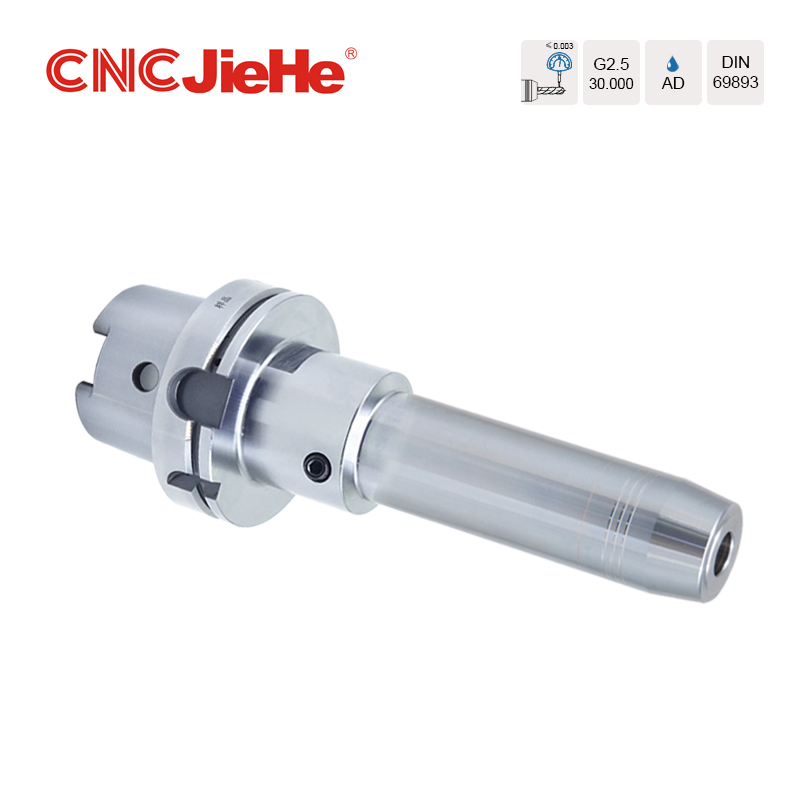

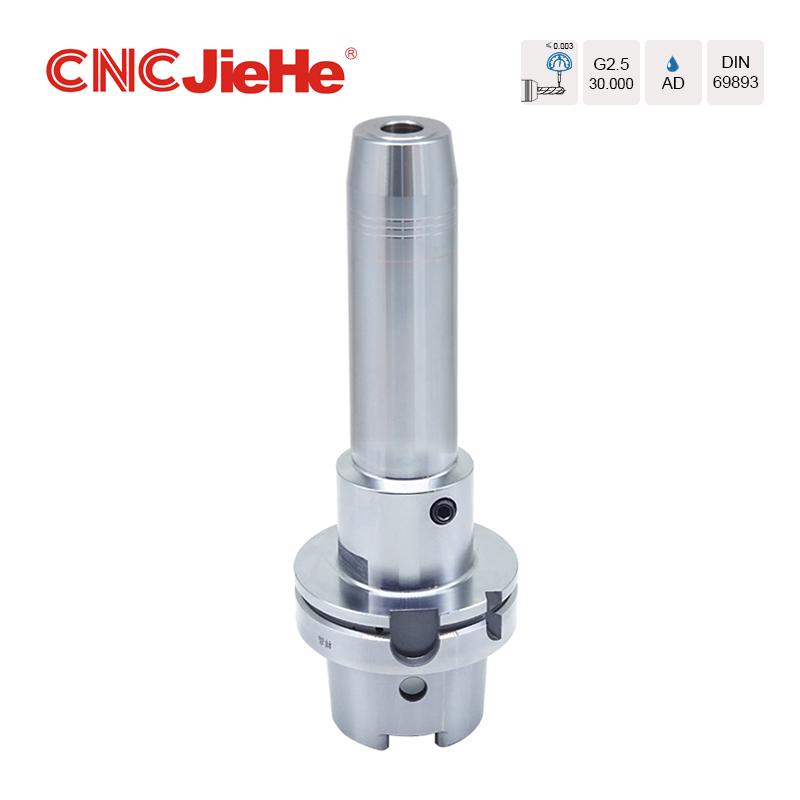

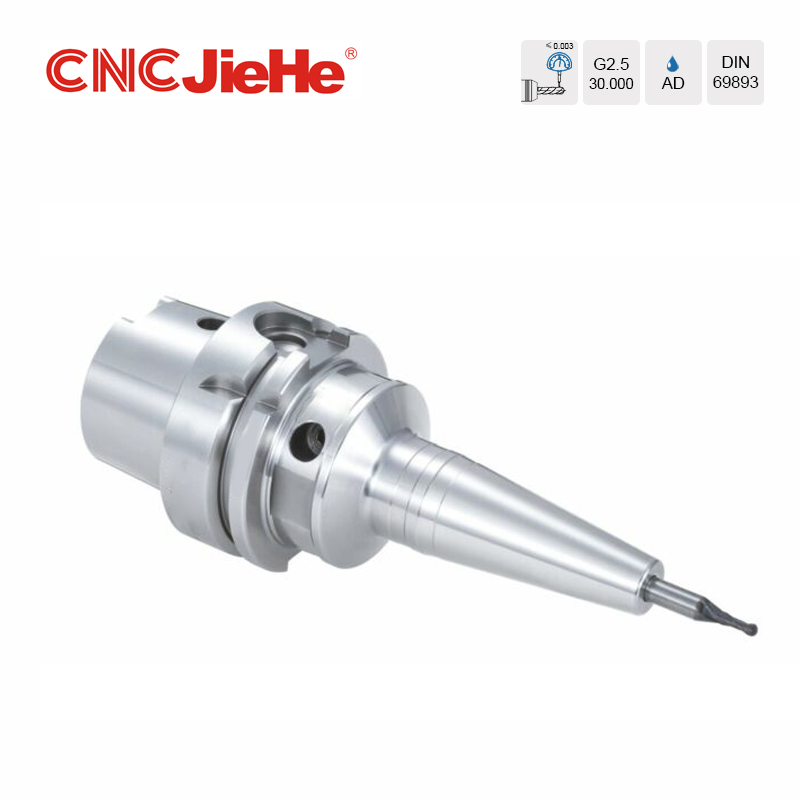

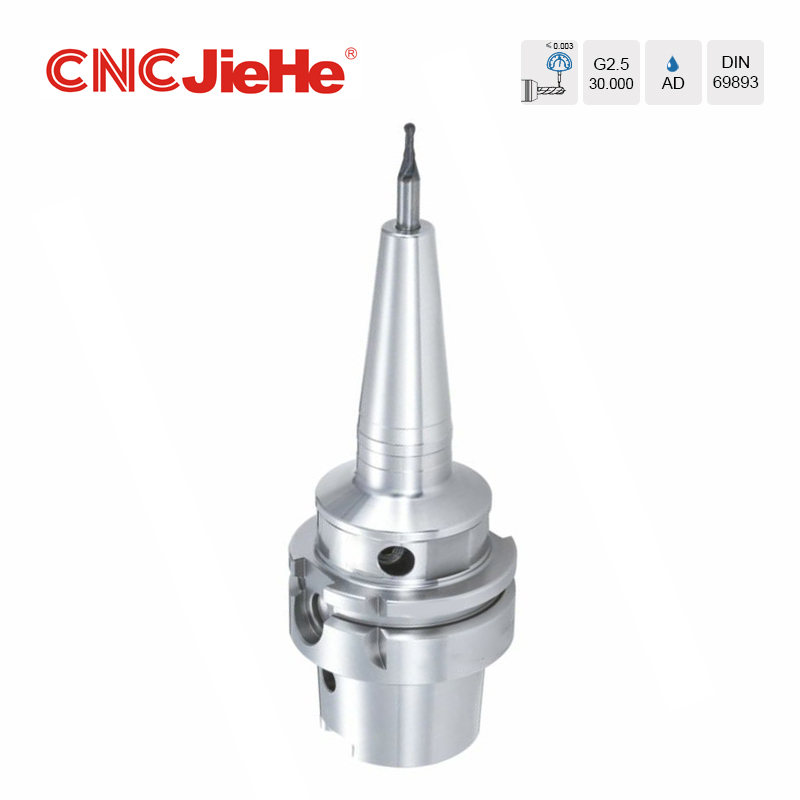

The HSK Slim Type hydraulic chuck is a remarkable addition to the world of CNC machining. It combines precision engineering with a specialized design to meet the demands of modern manufacturing. With its ability to handle a variety of tool sizes and its suitability for heavy machining tasks, it provides users with a versatile solution. Whether used with endmills, carbide drills, or burnishing reamers, it delivers reliable performance and high efficiency. Its compliance with international standards and availability in different models make it a preferred choice for those seeking to optimize their machining processes.

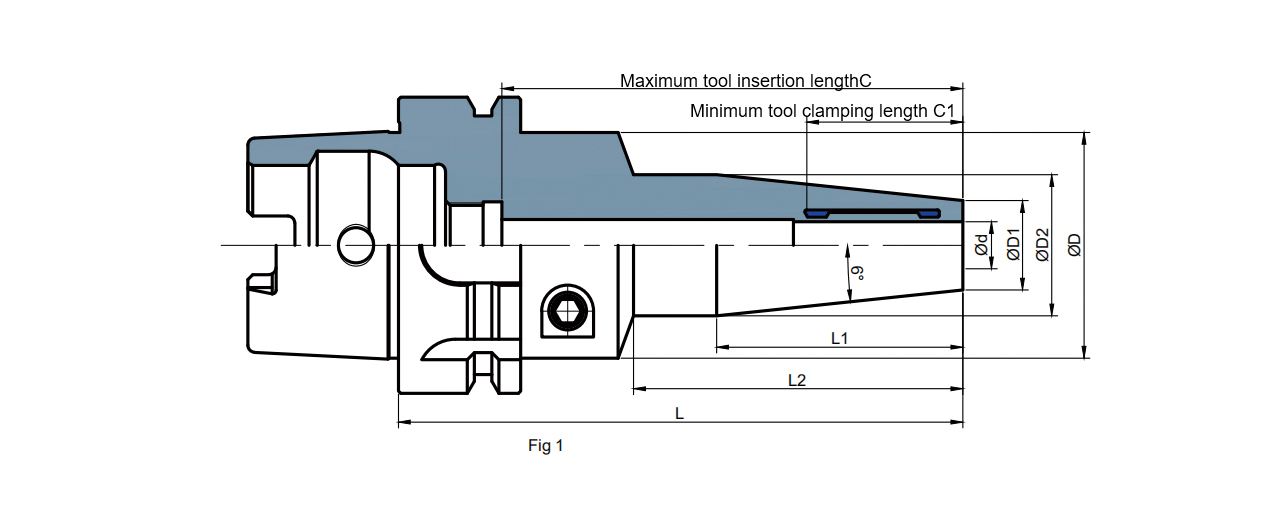

Product Schematic

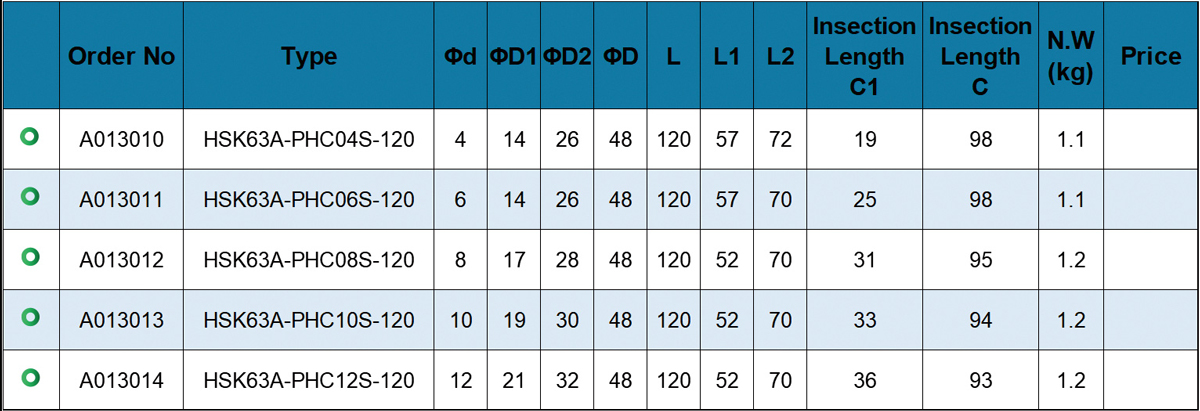

Product Parameters

Product System

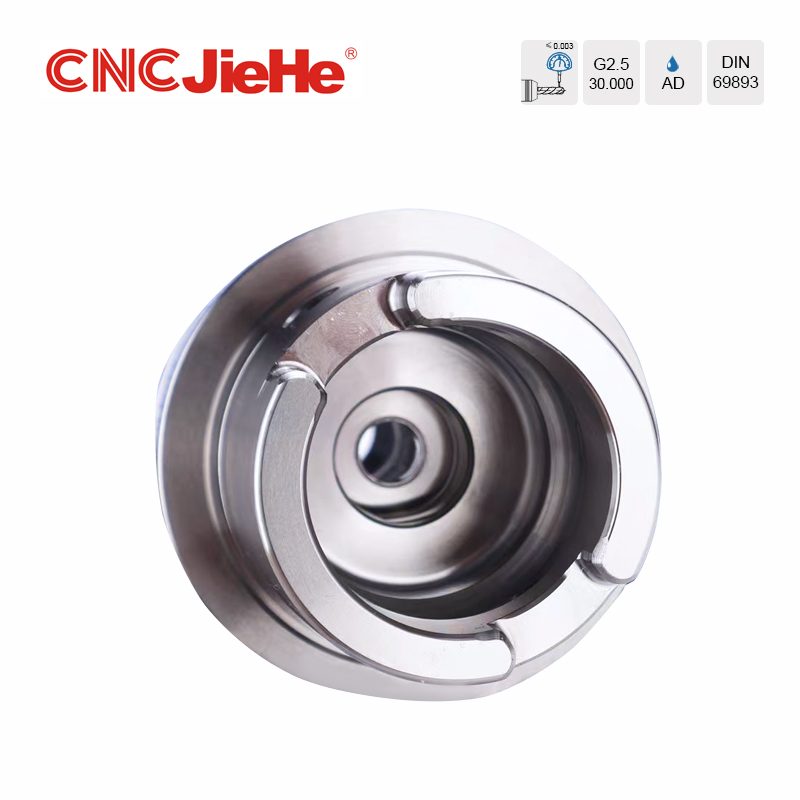

The HSK Slim Type hydraulic chuck operates based on a hydraulic clamping system. The actuation screw B drives the actuation piston, which then presses the hydraulic fluid into the chamber system. This action causes the expansion sleeve to tightly grip the tool shank. The length adjustment screw E allows for quick and easy presetting of the tool position. The toolholder body features a groove that interacts with the tool shank. During the clamping process, the tool shank is first centered, and then the expansion sleeve expands to ensure a secure hold. The high clamping pressure forces any oil, grease, or lubricant residues into the groove, keeping the contact surfaces dry and minimizing tool wear. The hydraulic fluid in the chamber system also provides a damping effect, enhancing the stability of the clamped tool during machining operations.

Optional Accessories

Our product offers a variety of optional configurations. Optional accessories such as the Hydraulic Collet and the HSK Lock Cutter Base With Bearing Pin can meet users' diverse requirements regarding precision and stability. Additionally, a wrench is provided to assist users with product installation and maintenance, enabling personalized product configurations.

How to Use Hydraulic Chuck

To ensure optimal performance and longevity of the hydraulic chuck, always clean the inner hole and outer diameter of the tool holder before use, removing any moisture or oil. Avoid tightening the chuck before inserting the tool, and loosen the pressure screw if the chuck has been unused for an extended period. Ensure the tool insertion length meets the specified minimum to prevent issues like deformation or slippage. Always tighten the pressure screw fully using a T-handle wrench, and ensure the tool dimensions are within the specified tolerance range. Only use tools with a fully round shank and avoid modifying the chuck or using non-original parts. For any issues, such as oil leakage or low pressure, contact the seller for assistance instead of attempting repairs.

Why Choose JieHe

Choose CNC JieHe for precision, reliability, and efficiency. Our HSK32-40ES Hydraulic Chuck offers high clamping force, exceptional accuracy (less than 0.003mm runout), and a rigid design ideal for heavy machining. With quick setup times, easy handling, and a range of cooling options, it ensures optimal performance and tool longevity. Backed by our commitment to global standards (ISO, DIN, JIS-B, ANSI) and consistent precision through vacuum heat treatment, our products are built to meet your toughest machining needs. Trust us to deliver quality, precision, and unmatched support for your operations.
