Inspection Device for Tool Holder

Product Description

The Tool Holder Precision Inspection Instrument is a high-accuracy measuring device designed for CNC machine tools, cutting tool manufacturing, and precision machining industries. It rapidly detects critical parameters such as radial runout, taper contact accuracy, and clamping force, ensuring post-installation stability and machining accuracy. Compatible with HSK, BT, CAT, and other standard tool holders for quality control and performance verification.

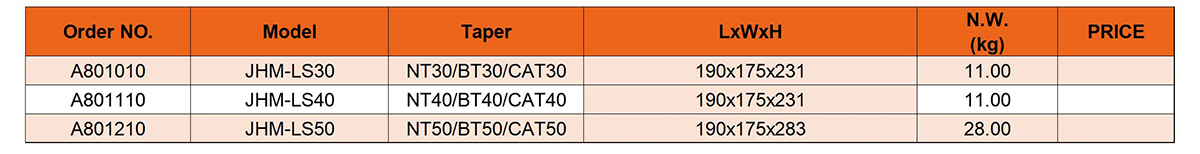

Product Parameter

Operation For Inspection Device for Tool Hoolder

1.To detect handle gently on the detection hole, ensure that cage ball, cone handle cleaning

2.Position the fixing key on spindle,turn right and fix the spindle .

3.The highest Position of the testing bar is the contact point.

4.Detection of NT and CAT to handle screws removed measurement device.

Matters needing attention

1.Correction seat must be placed on a horizontal bracket.

2.Place Clane room temperature is maintained around 20°±10°.

3.Do not konck or touch the corrected seat.

4.Kept clane and regular testing ,maintenance.

5.The scale is placed on the test location,you can test and calibration .
