TYPE F Series VDI Tool Holder (DIN 69880)

Product Description

The Tool Holder is a high-precision, high-rigidity tool clamping device featuring a Morse Taper design, ensuring superior stability and concentricity during

machining. It is suitable for various machine tools, including drill presses, milling machines, and lathes, particularly for high-precision and heavy-duty cutting applications.

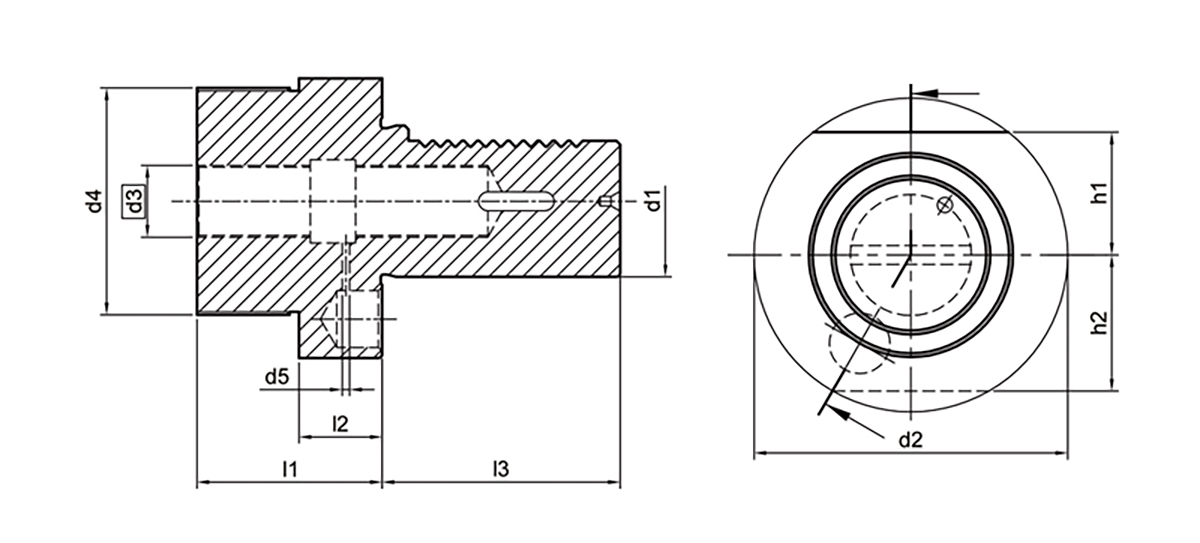

Product Schematic

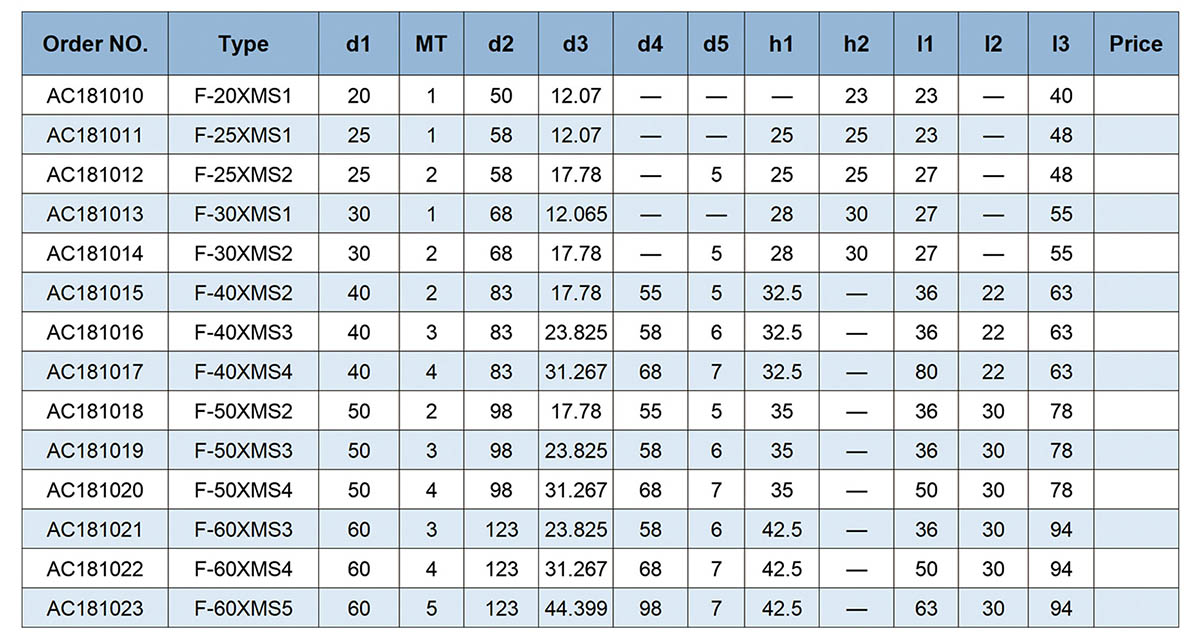

Product Parameter

Product Advantages

High-Precision Clamping: Precision taper fit minimizes tool runout for superior surface finish.

Heavy-Duty Cutting: Optimized rigidity handles high cutting forces, ideal for demanding operations.

Stable & Efficient: Maintains balance at high speeds, reducing vibration and boosting productivity.

Extended Lifespan: High-hardness materials and precision engineering significantly enhance durability.

Plug-and-Play: Simplified installation reduces operational complexity and increases production efficiency.

Quality Inspection

Jiehe Machinery owns a leading tool holder production factory and inspection and testing center in China, with manufacturing capabilities ranking among the top. Our core production and testing equipment include GROB, TAKISAWA, Doosan, HAIMER, KELCH, ZOLLER, Mitutoyo, etc., and we also possess the full range of standard tool holders and tool holder gauges from German Diebold. The use of these equipment further ensures the superiority of our production efficiency and product quality.

We have an intelligent production line, which ensures the stability of product quality and greatly improves production efficiency.

Photographs of Products in the Workshop

Our workshop maintains a robust inventory of semi-finished products, ensuring a steady supply and enabling us to meet tight deadlines with speed and efficiency. With streamlined production processes and a well-organized supply chain, we guarantee quick turnaround times without compromising on quality. Our experienced team and state-of-the-art facilities allow us to respond swiftly to customer demands, offering flexible solutions and fast delivery to keep your operations running smoothly.

Factory Displayment

Jining Jiehe Machinery Co., Ltd., established in 2000, is a national high-tech enterprise and a provincial-level technology-driven and innovative company. Specializing in CNC machine tool accessories, the company offers over 1,000 product varieties, with 60% of products exported. With over 200 CNC machines and a team of more than 100 employees, Jiehe has earned over 30 national patents and is recognized for its well-known trademarks such as CNCJiehe, Sun Moon Lake, and Goose. The company regularly participates in international exhibitions across Beijing, Shanghai, the U.S., Germany, Italy, and Tokyo, building a strong global market presence. By benchmarking top companies in Germany and Japan, Jiehe has achieved rapid development and established a comprehensive production and R&D base with subsidiaries in Jining, Shandong, Suzhou, and beyond.
