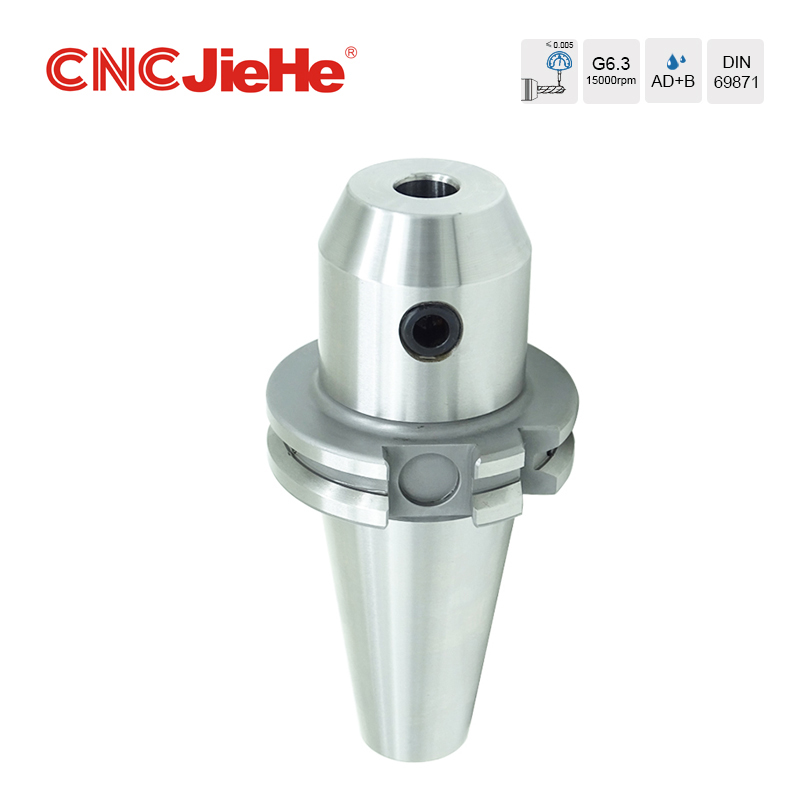

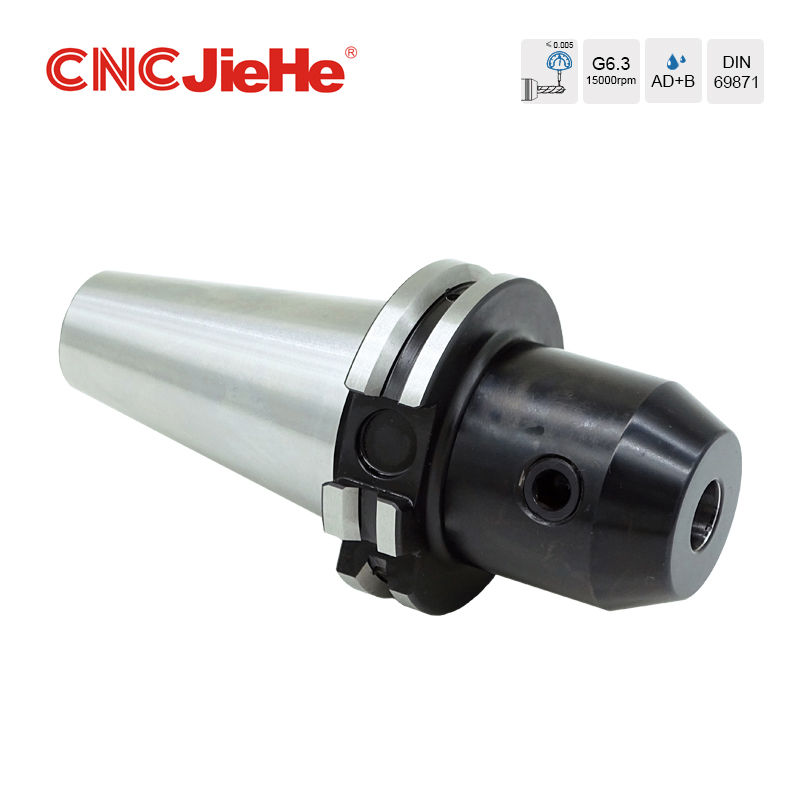

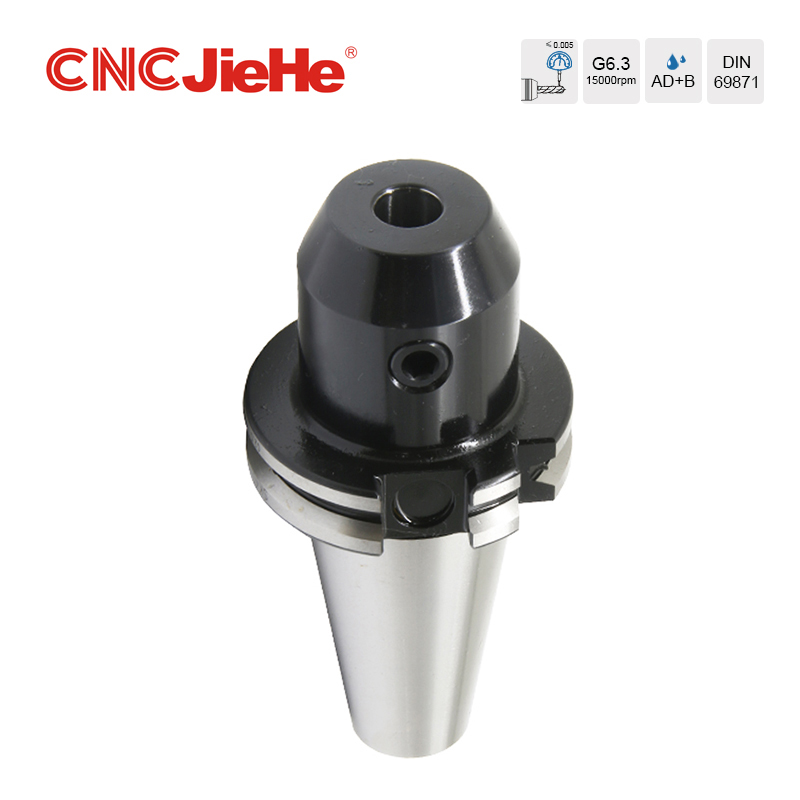

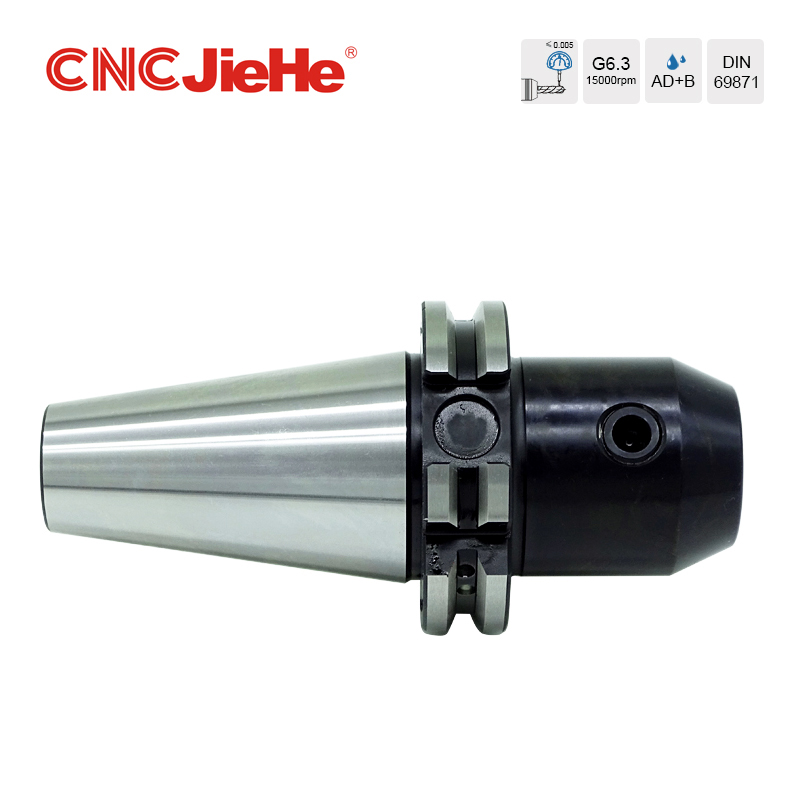

SK SLN End Mill Holder (DIN69871)

Product Description

SK SLN End Mill Holder is suitable for milling scenes with high precision and high rigidity requirements. This series of tool handles are famous for their excellent clamping stability, durability and versatility, and are widely used in mold manufacturing, automobile parts processing, aerospace and other fields.

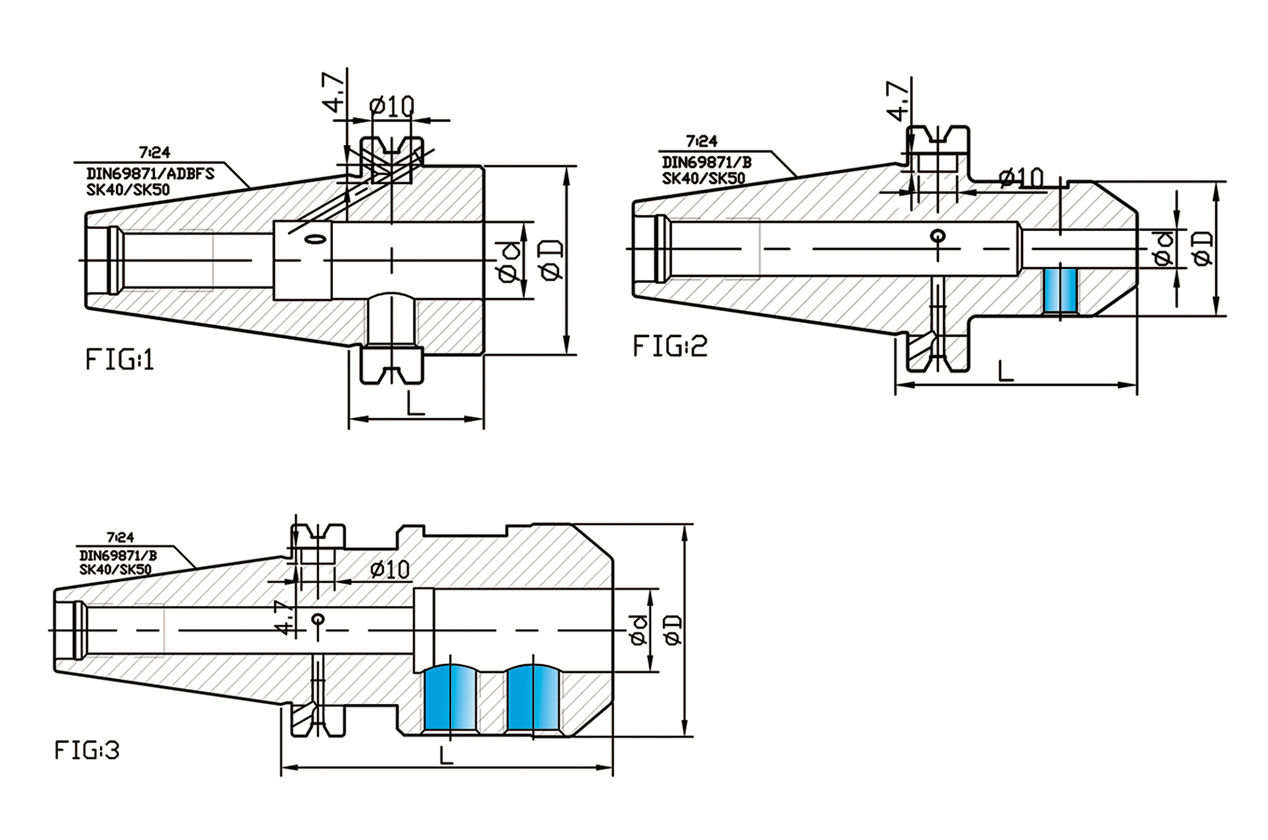

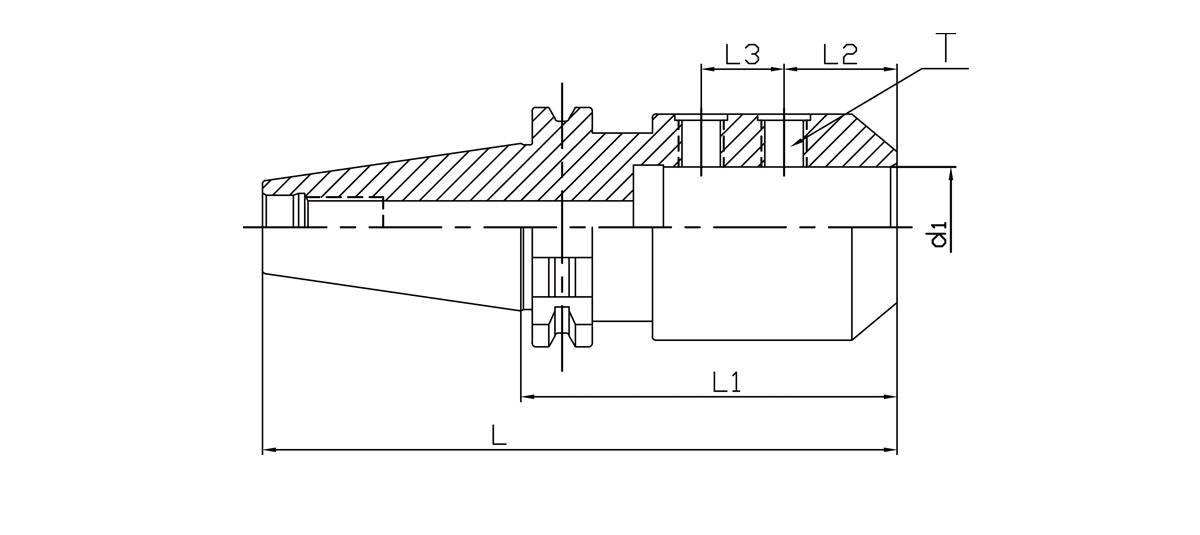

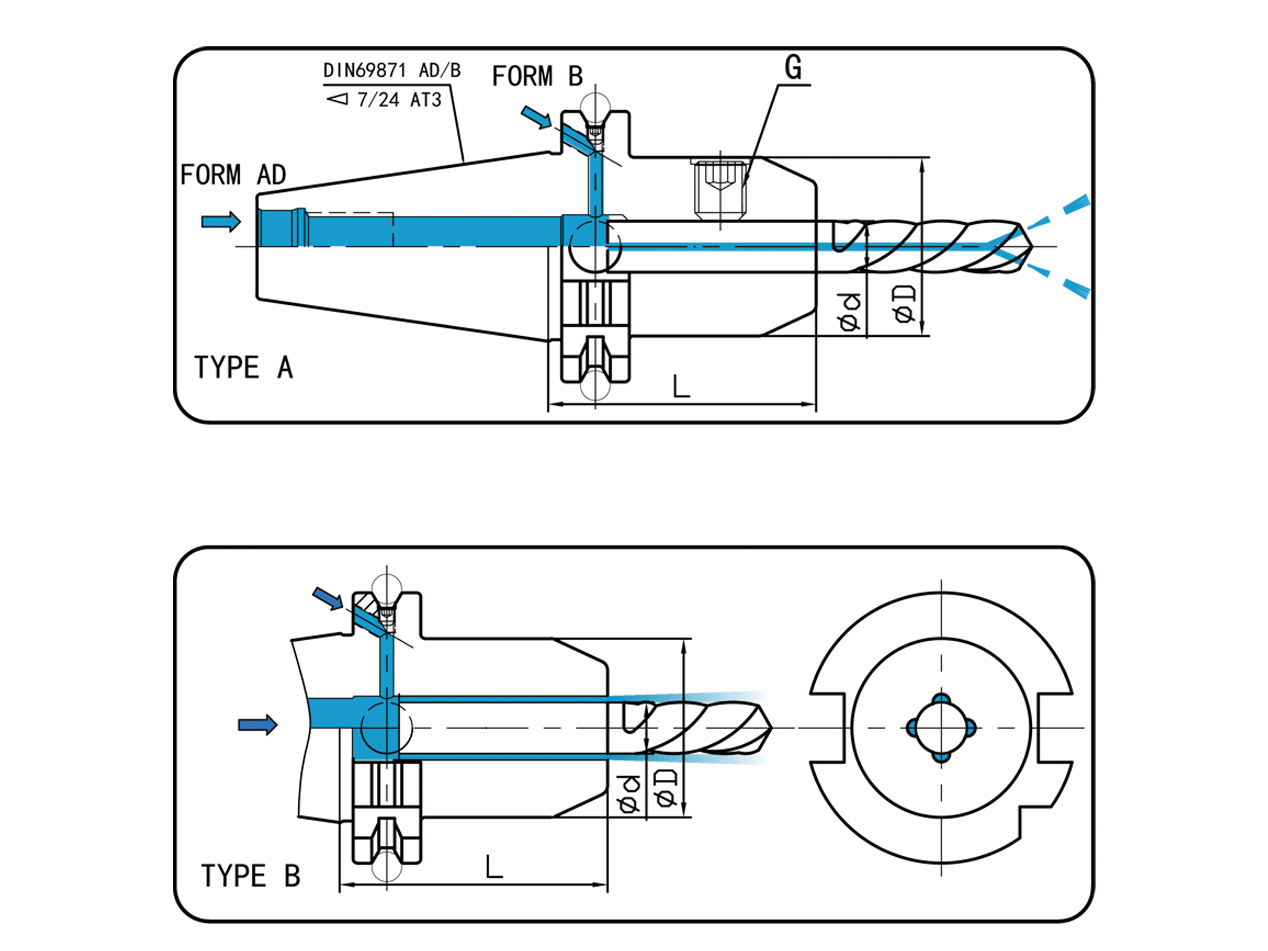

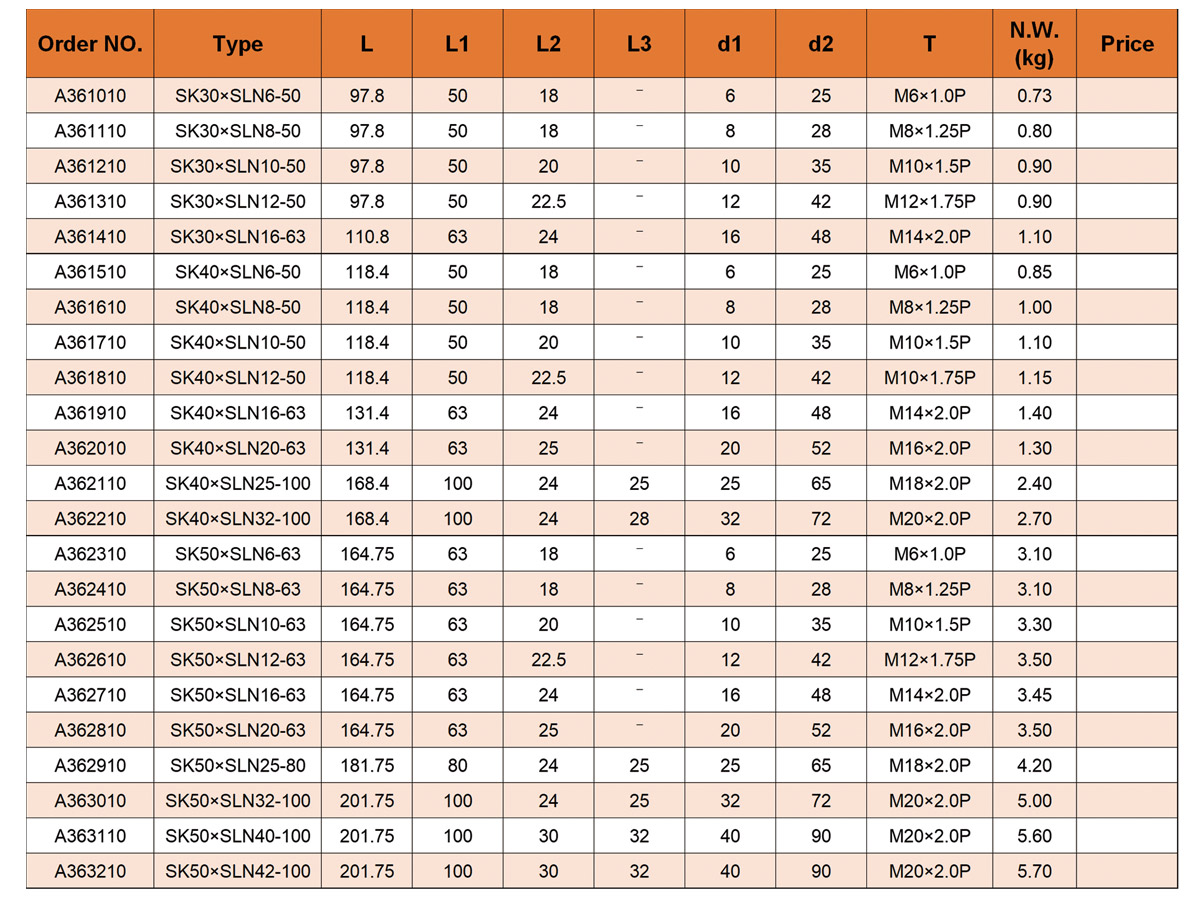

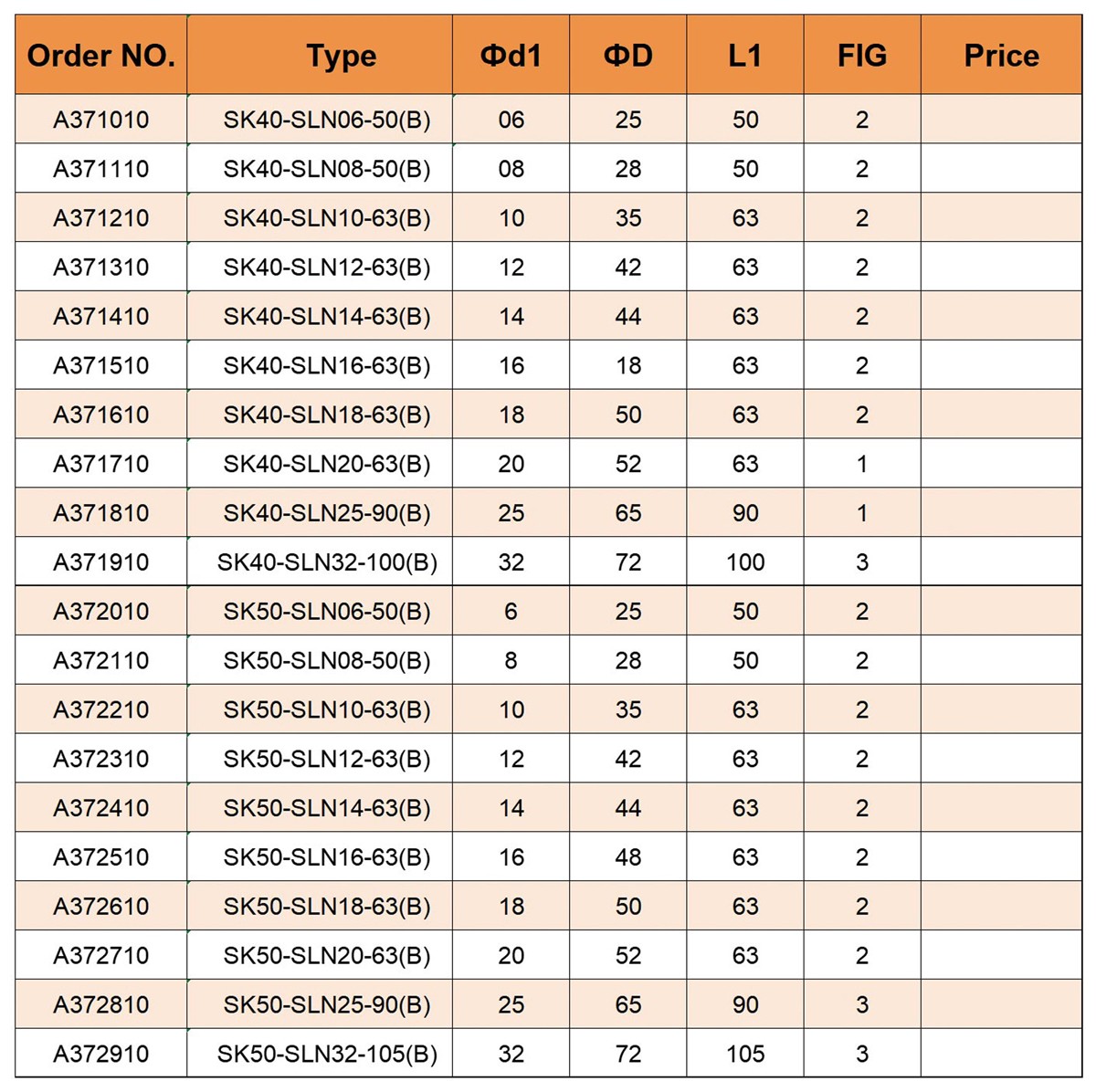

Product Schematic

Product Advantages

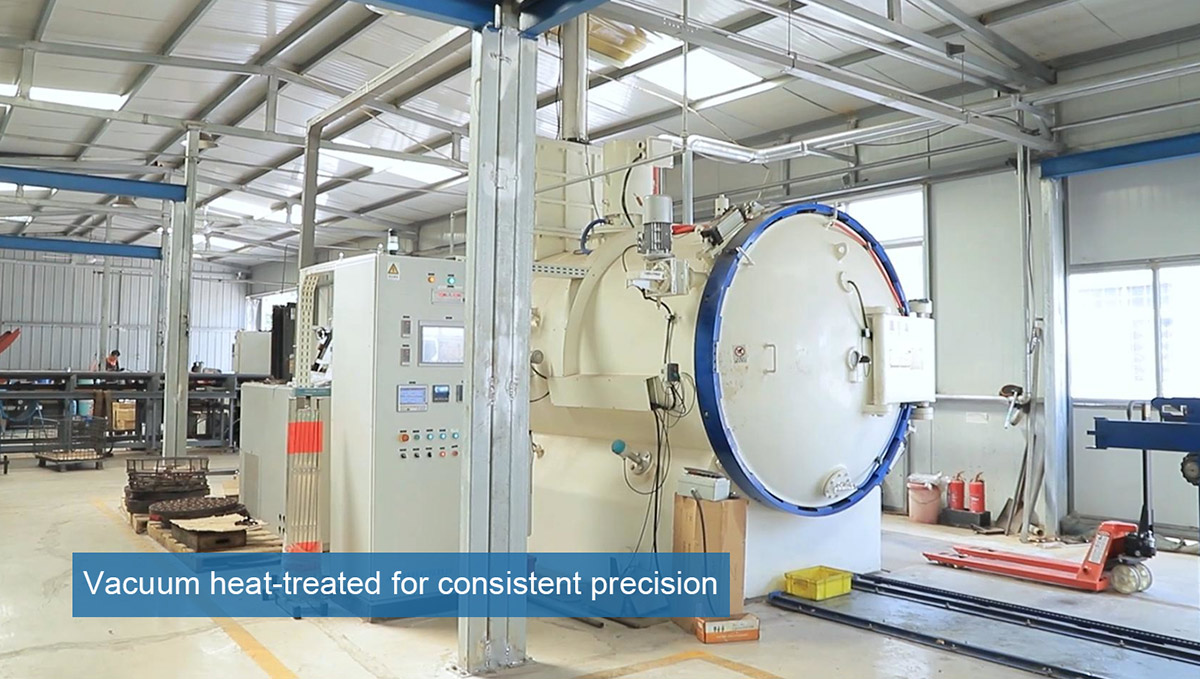

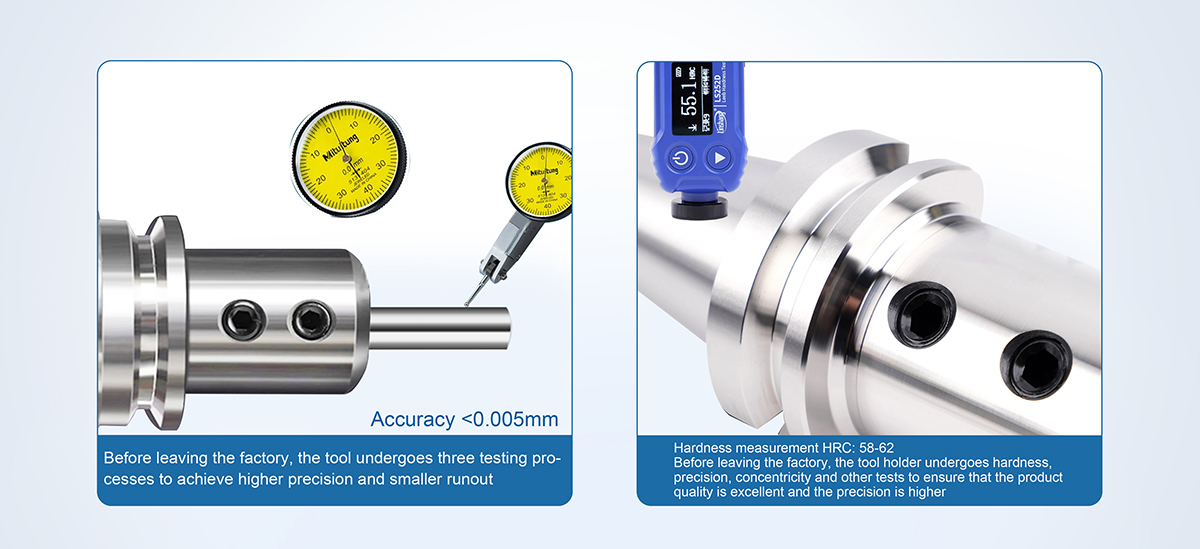

SK SLN End Mill Holder is made of high-quality alloy steel. After special heat treatment (quenching+tempering) and cryogenic treatment, the hardness reaches HRC 45-50, which has both wear resistance and impact resistance. Precisely grind the inner hole (tolerance H6) and the conical surface (7/24 taper) to ensure the efficient fit with the spindle conical hole, and the runout accuracy is ≤0.003mm(3μm) to ensure the quality of the machined surface. The front end of the tool holder adopts Setscrew Locking structure, and the tool handle is directly pressed by side wall screws, which provides strong clamping force and prevents the tool from slipping or vibrating during machining. Supports clamping straight shank milling cutters, drills, etc., with a wide range of clamping diameters (common specifications: φ4mm~φ32mm). Before leaving the factory, the tool holder has undergone a rigorous dynamic balance test (the balance grade is G2.5, and the rotation speed can reach more than 20,000 RPM), which reduces the centrifugal force vibration during high-speed rotation, prolongs the service life of the spindle and improves the machining accuracy. The surface is coated with titanium nitride (TiN) or blackened, which enhances the antirust ability and adapts to long-term use in the coolant environment. Comply with international standards such as MAS BT and DIN 69871, and adapt to mainstream brand processing centers. Provide a variety of specifications: BT30, BT40, BT50, etc., to meet the needs of different machine tool spindle interfaces.

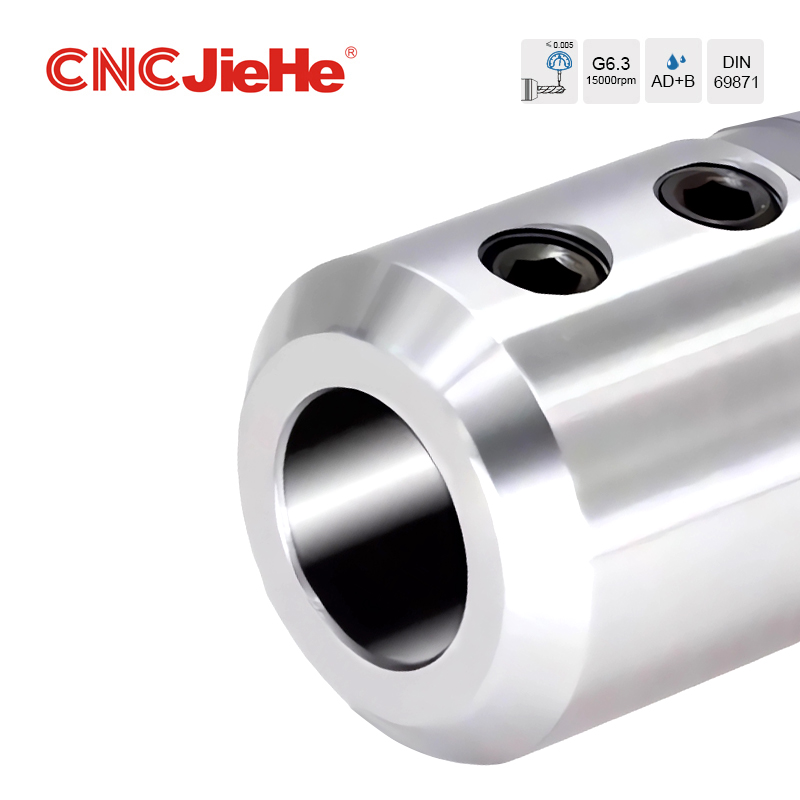

High Rigidity and Stability: tool holders secure tools with lateral screws, featuring a simple structure and high rigidity. They can withstand significant cutting forces, ensuring stability during machining.

High Precision: The contact surface between the tool holder and the tool is precision-machined, guaranteeing high coaxiality and repeatability, making it suitable for high-precision machining requirements.

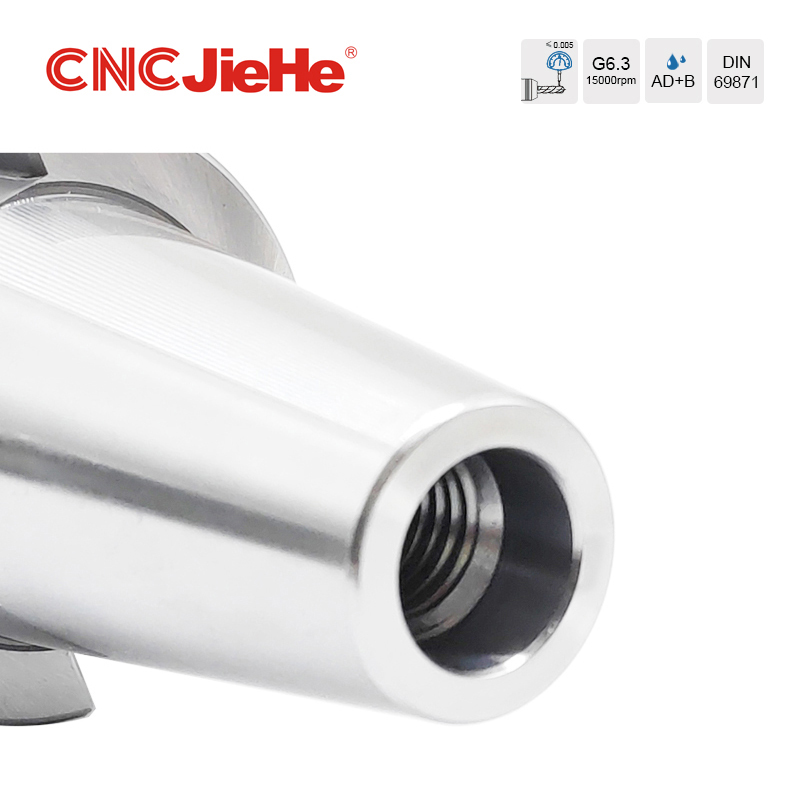

Taper Specification:

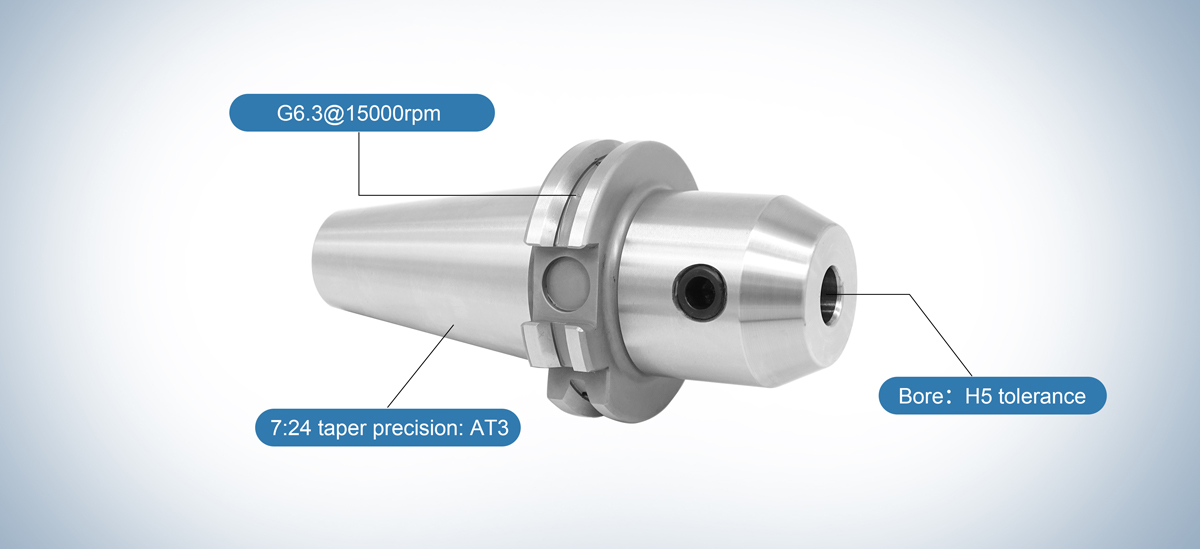

The tool holder features a 7:24 taper, The taper precision meets the AT3 grade,

Bore Tolerance:

The bore tolerance of the tool holder is H5 grade, a precise tolerance level that ensures a high-precision fit between the tool and the holder, minimizing vibration and errors.

Dynamic Balance Grade:
At a rotational speed of 15,000 rpm, the tool holder achieves a dynamic balance grade of G6.3. This indicates excellent balance during high-speed rotation, effectively reducing vibration and ensuring stability and surface quality during machining.

Optional Accessories

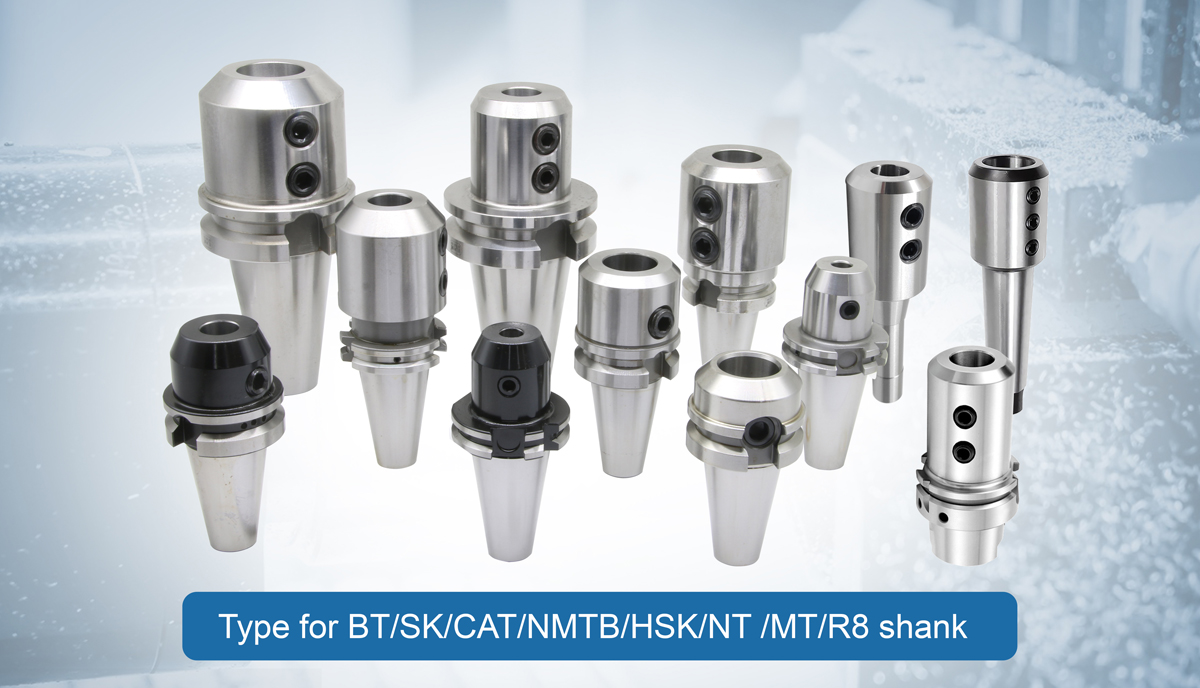

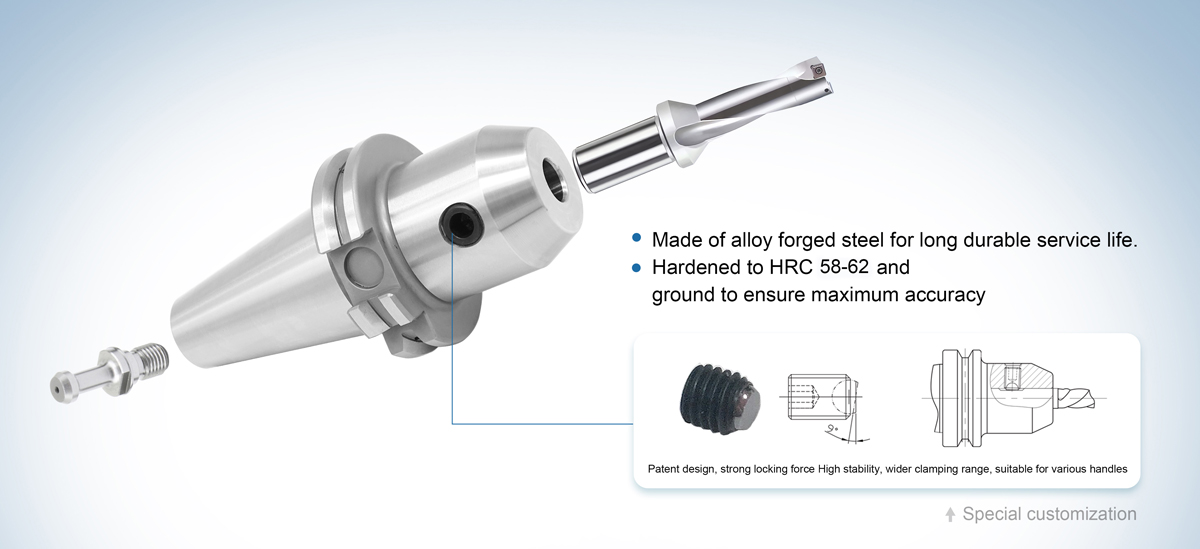

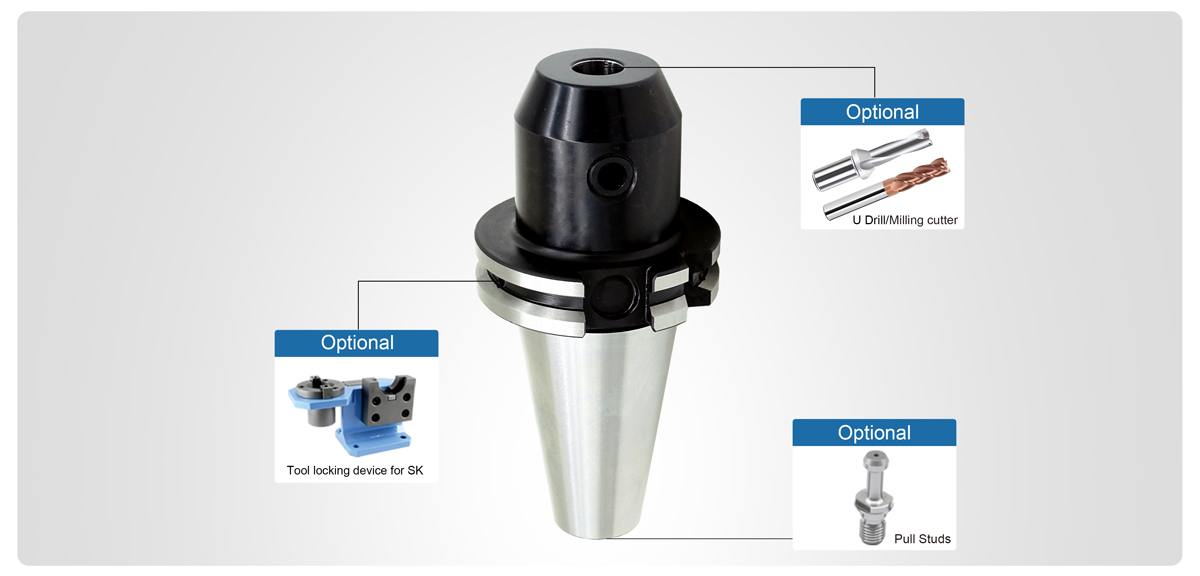

The  tool holder is a versatile tool clamping device that can be flexibly equipped with various accessories, including U-drills, milling cutters, Tool locking device for SK,and pull studs, based on machining requirements. This design allows it to adapt to different machining tasks, offering greater flexibility and efficiency.

Quality Inspection

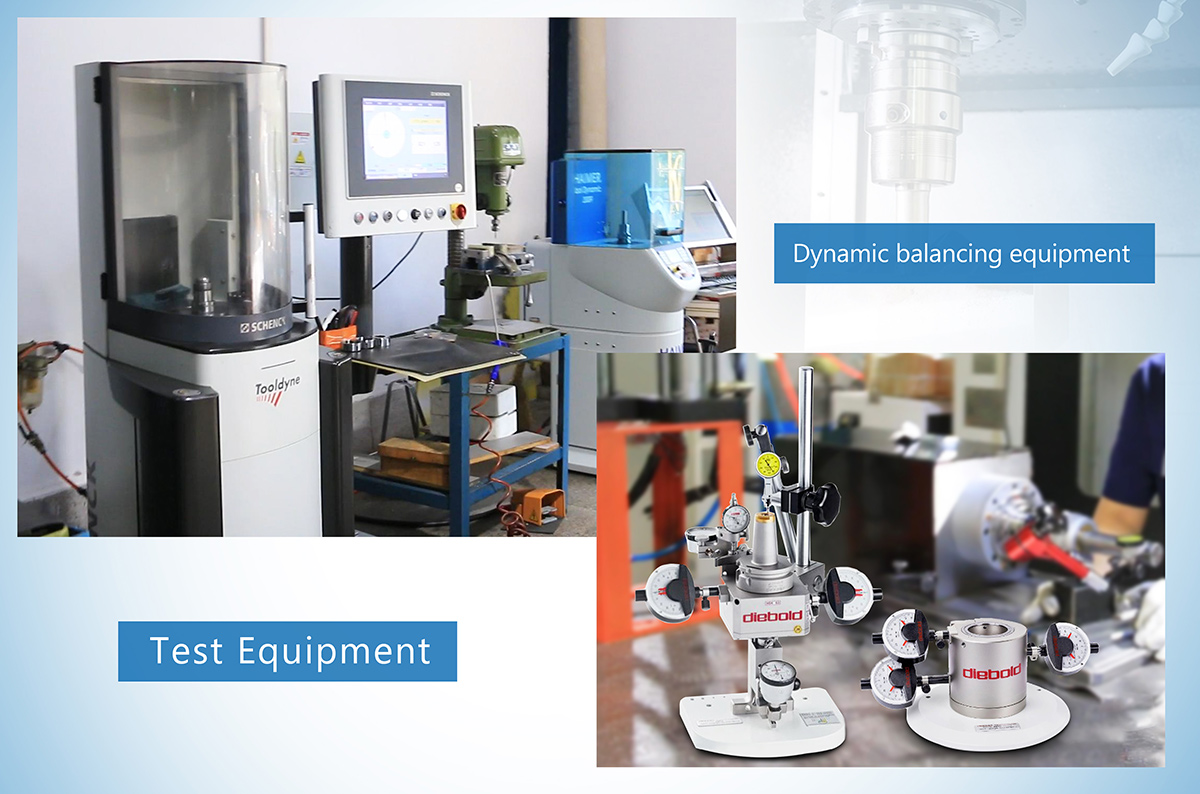

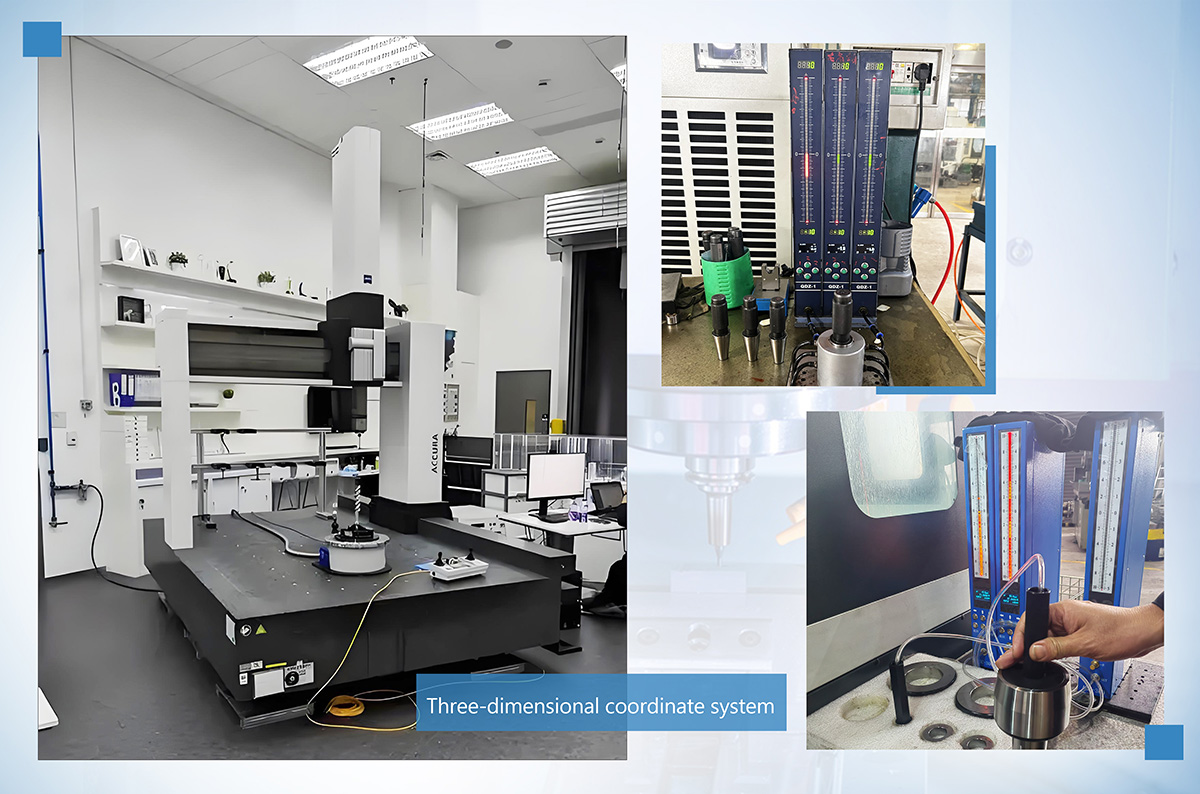

Jiehe Machinery owns a leading tool holder production factory and inspection and testing center in China, with manufacturing capabilities ranking among the top. Our core production and testing equipment include GROB, TAKISAWA, Doosan, HAIMER, KELCH, ZOLLER, Mitutoyo, etc., and we also possess the full range of standard tool holders and tool holder gauges from German Diebold. The use of these equipment further ensures the superiority of our production efficiency and product quality.

We have an intelligent production line, which ensures the stability of product quality and greatly improves production efficiency.

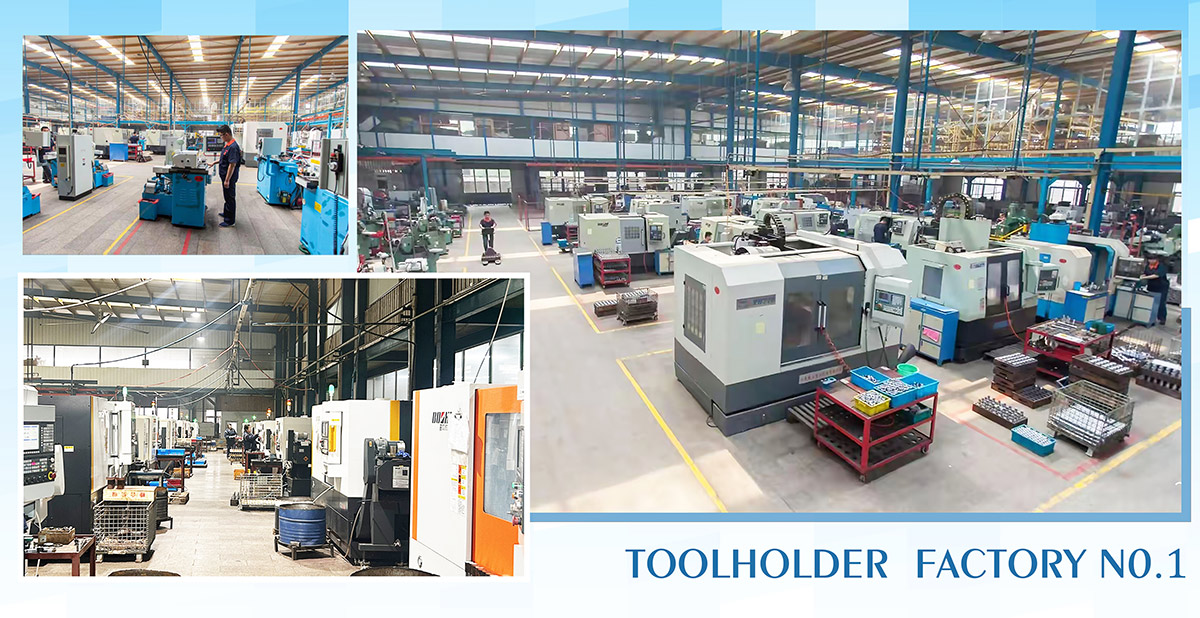

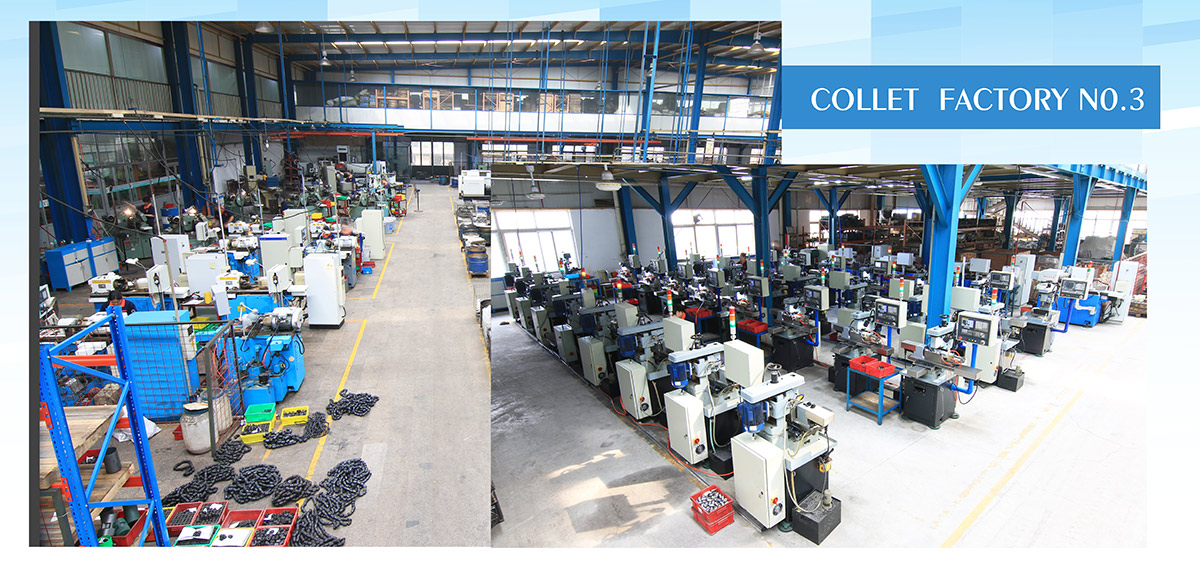

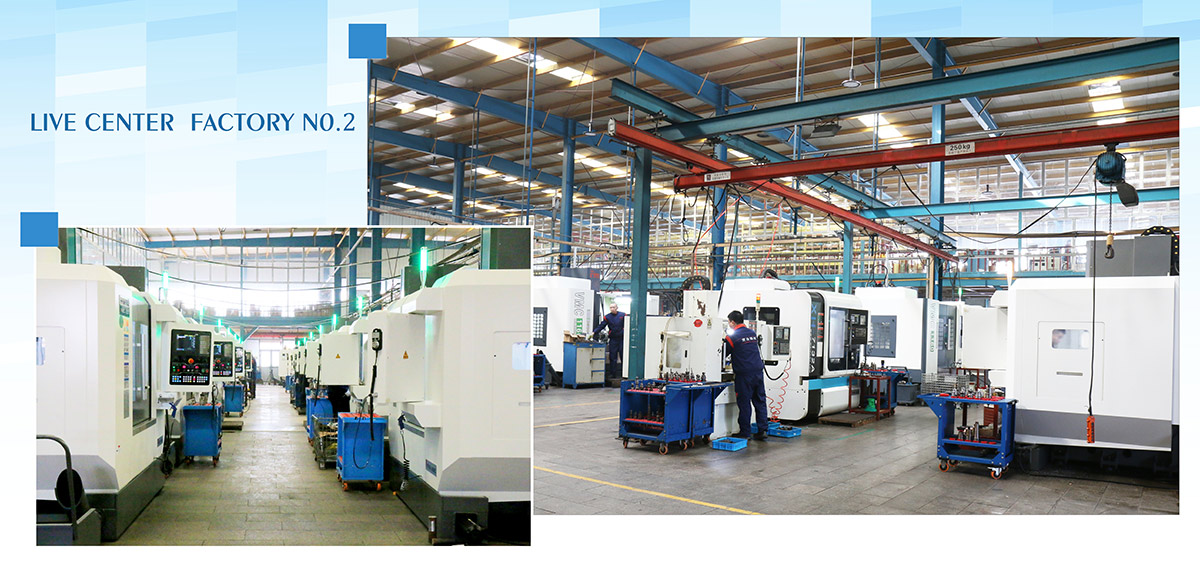

Photographs of Products in the Workshop
